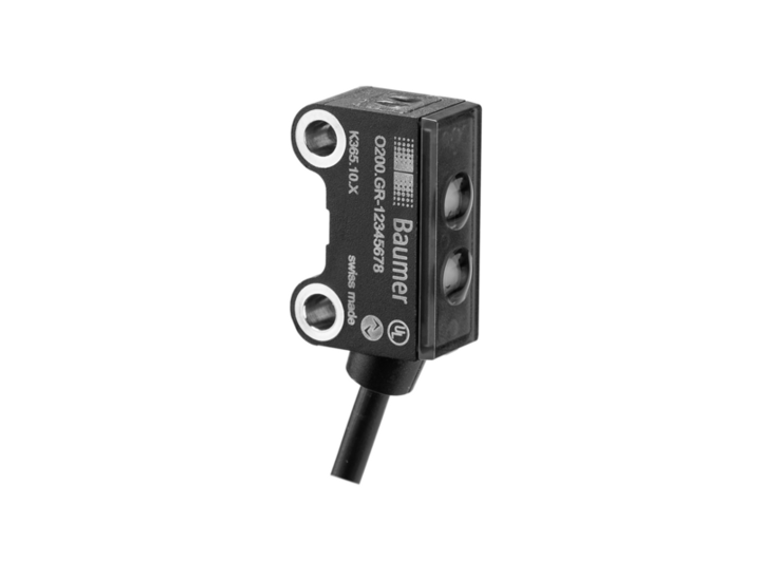

Baumer O200.GR-PV1Z.72NV/BX50 11212585

(No reviews yet) Write a Review

Write a Review

Baumer

Baumer O200.GR-PV1Z.72NV/BX50 11212585

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

11212585

UPC:

MPN:

Condition:

New

Type:

Background suppression

Sensing distance Tw:

50 mm

Sensing range Tb:

7 … 50 mm

Smallest object recognizable typ.:

0.25 mm at 30 mm

Power on indication:

LED green

Alignment / soiled lens indicator:

Flashing output indicator

Output indicator:

LED yellow

Sensing distance adjustment:

No

Suppression of reciprocal influence:

Yes

Alignment optical axis:

< 1,5°Light source=Pulsed red LED

Wave length:

644 nm

Response time / release time:

< 1 ms

Voltage supply range +Vs:

10 … 30 VDC

Current consumption max. (no load):

20 mA (@ 30 VDC)

Current consumption typ.:

16 mA (@ 24 VDC)

Voltage drop Vd:

<2 VDC

Output function:

Light / dark operate

Output circuit:

PNP complementary

Output current:

50 mA

Short circuit protection:

Yes

Reverse polarity protection:

Yes

Width / diameter:

8 mm

Height / length:

25.1 mm

Depth:

14.1 mm

Design:

Rectangular

Mechanical mounting:

Sleeve smooth (stainless steel)

Housing material:

Plastic (ASA, PMMA)

Front (optics):

PMMA

Connection types:

Flylead connector M8 4 pin, L=200 mm

Cable characteristics:

PVC / PVC 4 x 0.08 mm²

Protection class:

IP 67

Operating temperature:

-30 … +50 °C

Datasheet:

View
