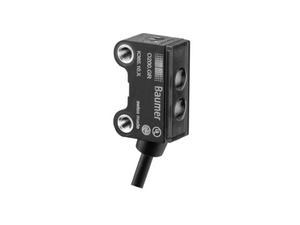

The Baumer O200.GR-PV1Z.72NV/H006_BX30 11212629 is a high-performance sensor with background suppression and a sensing distance of 30 mm. It features a pulsed red LED light source with a wavelength of 644 nm and a rapid response time of less than 1 ms. This sensor is designed for precise detection with the capability to recognize objects as small as 0.25 mm at 30 mm. It includes a green LED for power indication and a yellow LED for output status, with a flashing output indicator for alignment or lens soiling issues. The sensor operates without the need for sensing distance adjustment and includes features such as suppression of reciprocal influence and short circuit protection. It has a PNP complementary output circuit with a maximum output current of 50 mA. The robust design includes a plastic housing with PMMA front optics, threaded sleeves for mounting, and an IP67 protection rating, making it suitable for challenging environments. The sensor is powered by a 10 to 30 VDC supply and has a low current consumption. It is equipped with a flylead connector for easy installation.
- Type:
- Background suppression
- Sensing distance Tw:
- 30 mm
- Sensing range Tb:
- 7 30 mm
- Smallest object recognizable typ.:
- 0.25 mm at 30 mm
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- No
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1,5°Light source=Pulsed red LED
- Wave length:
- 644 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA (@ 30 VDC)
- Current consumption typ.:
- 16 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 14.1 mm
- Design:
- Rectangular
- Mechanical mounting:
- Threaded sleeves M3 (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 4 pin, L=200 mm
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Protection class:
- IP 67
- Operating temperature:
- -30 +50 °C
