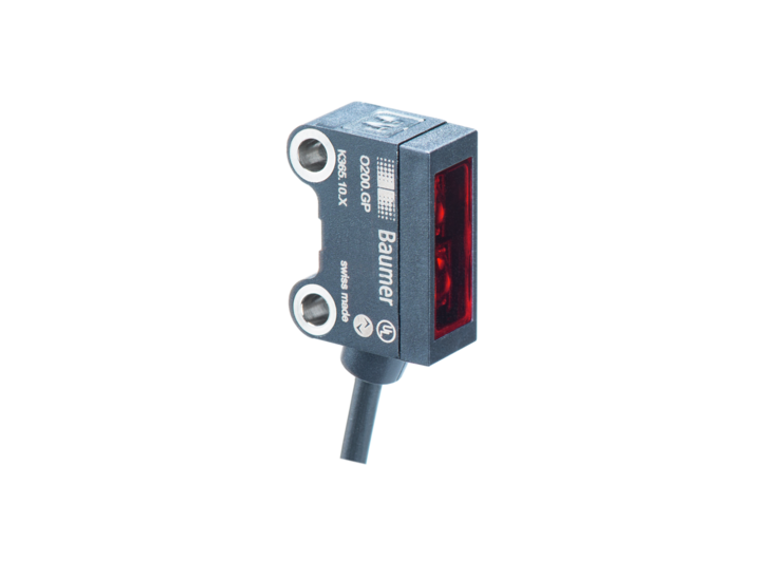

The Baumer O200.RL.C-GW1J.72NV/FIN1 11223759 is a retro-reflective sensor equipped with single lens optics and a pulsed red laser diode light source. It features a nominal range of 1.2 meters and an actual range of 0.8 meters, capable of recognizing objects as small as 3 mm at 500 mm. This sensor includes a polarization filter and offers both teach-in and IO-Link options for sensitivity adjustment. It has a laser class of 1 and emits a parallel beam with a wavelength of 680 nm. The device is designed for high-speed applications with a response time and release time of less than 0.05 ms, and jitter under 0.02 ms. It operates within a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 20 mA at 10 VDC. The sensor features a push-pull output circuit with light/dark operate functionality and includes short circuit and reverse polarity protection. Its compact, rectangular design measures 8 mm in width, 25.1 mm in length, and 15.8 mm in depth, with a smooth stainless steel sleeve for mechanical mounting and a durable plastic housing. The sensor is suitable for operating temperatures ranging from -20 to +50 °C and is rated IP 67 for protection against dust and water ingress. It connects via a flylead connector M8 4 pin with a 200 mm PVC cable.
- Type:
- Retro-reflective sensor
- Version:
- Single lens optics
- Light source:
- Pulsed red laser diode
- Actual range Sb:
- 0.8 m
- Nominal range Sn:
- 1.2 m
- Smallest object recognizable typ.:
- 3 mm at 500 mm
- Polarization filter:
- Yes
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- Teach-in and IO-Link
- Laser class:
- 1
- Distance to focus:
- Parallel beam
- Wave length:
- 680 nm
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1,5°
- Response time / release time:
- < 0.05 ms (High Speed Mode)
- Jitter:
- < 0.02 ms (High Speed Mode)
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA (@ 10 VDC)
- Current consumption typ.:
- 10 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Sleeve smooth (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 4 pin, L=200 mm
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Operating temperature:
- -20 +50 °C
- Protection class:
- IP 67
