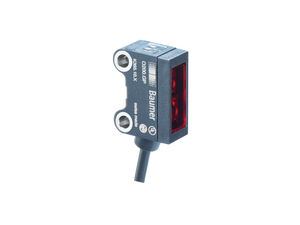

The Baumer O200.RL.C-GW2I.72NV/A014_FIN1 11229193 is a retro-reflective sensor equipped with single lens optics and an IO-Link dual channel. It features a pulsed red laser diode light source with an actual range of 0.8 m and a nominal range of 1.2 m. The sensor can recognize objects as small as 3 mm at 500 mm and includes a polarization filter. Key indicators include a flashing output for alignment or soiled lens and LED indicators for output (yellow) and power (green). Sensitivity can be adjusted via IO-Link. It operates safely within Laser class 1, emitting a parallel beam with a wavelength of 680 nm. The sensor minimizes reciprocal influence and offers precise alignment with an optical axis under 1.5°. It boasts a rapid response time/release time of less than 0.2 ms and jitter under 0.18 ms in High Speed Mode. The sensor supports a voltage supply range of 10 to 30 VDC, with a typical current consumption of 10 mA at 24 VDC. It features light/dark operate output functions and a push-pull output circuit, capable of handling output currents up to 50 mA. The device is designed for durability and reliability with short circuit and reverse polarity protection. Its compact, rectangular design measures 8 mm in width, 25.1 mm in height, and 15.8 mm in depth, housed in plastic with a smooth stainless steel sleeve for mechanical mounting. It connects via a Flylead connector M8 4 pin and operates in temperatures ranging from -20 to +50 °C, maintaining an IP 67 protection class.
- Type:
- Retro-reflective sensor
- Version:
- Single lens optics IO-Link dual channel
- Light source:
- Pulsed red laser diode
- Actual range Sb:
- 0.8 m
- Nominal range Sn:
- 1.2 m
- Smallest object recognizable typ.:
- 3 mm at 500 mm
- Polarization filter:
- Yes
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- IO-Link
- Laser class:
- 1
- Distance to focus:
- Parallel beam
- Wave length:
- 680 nm
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1,5°
- Response time / release time:
- < 0.2 ms (High Speed Mode)
- Jitter:
- < 0.18 ms (High Speed Mode)
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA (@ 10 VDC)
- Current consumption typ.:
- 10 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 50 mA (< 40 °C), sum of all outputs 20 mA (< 50 °C), sum of all outputs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Sleeve smooth (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 4 pin, L=200 mm
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Operating temperature:
- -20 +50 °C
- Protection class:
- IP 67
