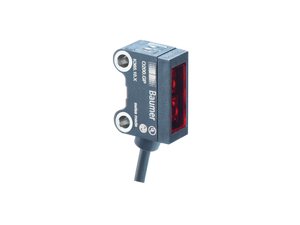

Baumer O200.RL.T-NV1T.72NV/FIN1 11231189 is a retro-reflective sensor designed for transparency object detection, featuring a pulsed red laser diode light source. It offers an actual range of 0.8 m and a nominal range of 1.2 m, equipped with a polarization filter to minimize signal attenuation to 10%. This sensor includes a flashing output indicator for alignment or soiled lens detection, and LED indicators for power status and output. It utilizes qTeach for sensitivity adjustment and operates within a laser class 1 safety standard. The sensor provides a parallel beam with a wavelength of 680 nm and boasts quick response and release times of less than 0.25 ms, with jitter under 0.06 ms. It supports a voltage supply range of 10 to 30 VDC, with typical current consumption of 10 mA at 24 VDC. Features include light/dark operate output function, NPN complementary output circuit, and protection against short circuits and reverse polarity. The compact, rectangular design measures 8 mm in width, 25.1 mm in length, and 15.8 mm in depth, with a smooth stainless steel sleeve for mechanical mounting and a durable plastic housing. It connects via a Flylead connector M8 4 pin and is suitable for operating temperatures from -20 to +50 °C, with an IP 67 protection class.
- Type:
- Retro-reflective sensor
- Version:
- Transparency object detection
- Light source:
- Pulsed red laser diode
- Actual range Sb:
- 0.8 m
- Nominal range Sn:
- 1.2 m
- Polarization filter:
- Yes
- Minimal signal attenuation:
- 10 %
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- qTeach
- Laser class:
- 1
- Distance to focus:
- Parallel beam
- Wave length:
- 680 nm
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1,5°
- Response time / release time:
- < 0.25 ms
- Jitter:
- < 0.06 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA (@ 10 VDC)
- Current consumption typ.:
- 10 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Sleeve smooth (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 4 pin, L=200 mm
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Operating temperature:
- -20 +50 °C
- Protection class:
- IP 67
