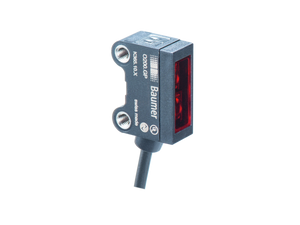

The Baumer O200.RL.T-PV1T.72CV/FIN1_H006 11231195 is a retro-reflective sensor designed for transparency object detection. It features a pulsed red laser diode light source with a wavelength of 680 nm and includes a polarization filter to minimize signal attenuation to 10%. The sensor has an actual range of 0.8 m and a nominal range of 1.2 m. It is equipped with a flashing output indicator for alignment or soiled lens detection, and LED indicators for power status and output. Sensitivity can be adjusted via qTeach. The sensor operates within a voltage supply range of 10 to 30 VDC, with a typical current consumption of 10 mA at 24 VDC. It offers both light and dark operating modes through its PNP complementary output circuit and includes short circuit and reverse polarity protection. The compact, rectangular design measures 8 mm in width, 25.1 mm in length, and 15.8 mm in depth, with a housing made of plastic (ASA, PMMA) and a PMMA front optics. It is mechanically mounted using threaded sleeves M3 and connects via a 4-pin, 2 m PVC cable. The sensor operates in temperatures ranging from -20 to +50 °C and is IP 67 rated for protection against dust and water ingress.
- Type:
- Retro-reflective sensor
- Version:
- Transparency object detection
- Light source:
- Pulsed red laser diode
- Actual range Sb:
- 0.8 m
- Nominal range Sn:
- 1.2 m
- Polarization filter:
- Yes
- Minimal signal attenuation:
- 10 %
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- qTeach
- Laser class:
- 1
- Distance to focus:
- Parallel beam
- Wave length:
- 680 nm
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1,5°
- Response time / release time:
- < 0.25 ms
- Jitter:
- < 0.06 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA (@ 10 VDC)
- Current consumption typ.:
- 10 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Threaded sleeves M3 (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Operating temperature:
- -20 +50 °C
- Protection class:
- IP 67
