Description

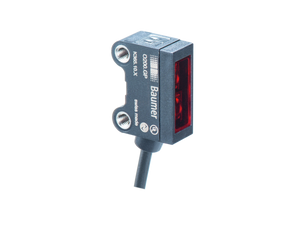

The Baumer O200.RP-GW2I.72NV/A014_H006 11230720 is a retro-reflective sensor equipped with a pulsed PinPoint LED light source and an IO-Link dual channel version. It features a nominal range of 4 meters and an actual range of 3 meters, capable of recognizing objects as small as 4 mm. This sensor includes a polarization filter and offers both light and dark operating modes with a push-pull output circuit. It has a quick response time of less than 0.4 ms and a jitter of less than 0.21 ms. The sensor operates within a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 45 mA at 10 VDC. It includes short circuit and reverse polarity protection, and it is housed in a durable plastic casing with dimensions of 8 mm in width, 25.1 mm in length, and 15.8 mm in depth. The sensor is designed for easy mounting with threaded sleeves M3 and is equipped with a flylead connector M8 4 pin. It operates effectively in temperatures ranging from -25 to +50 °C and is rated IP 67 for protection against dust and water ingress.
