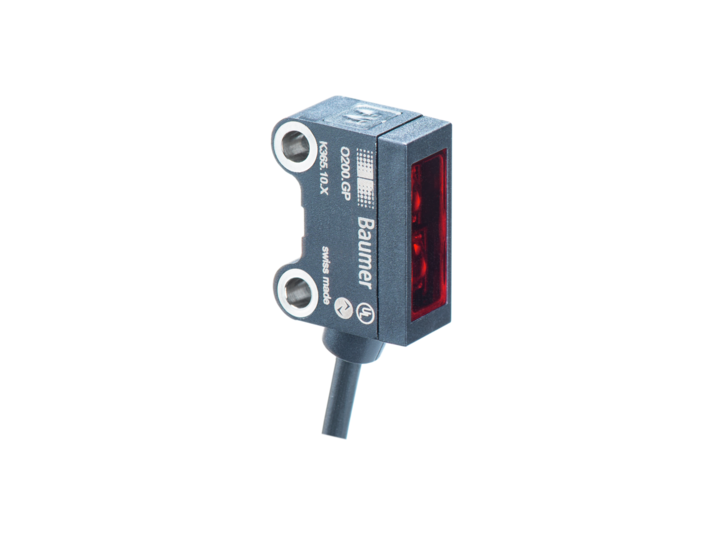

The Baumer O200.SL-GW1J.72CV/F160 11230778 is a high-precision light barrier equipped with a pulsed red laser diode, suitable for detecting the smallest objects with a typical size of 0.5 mm. It features a scanning range of 90% to 85% of the background position from 25 to 180 mm and a focused sensing distance of 160 mm. The device offers quick response and release times of less than 0.25 ms in High Speed Mode, with minimal jitter under 0.06 ms. It operates on a voltage supply range of 10 to 30 VDC and includes efficient power management with a maximum current consumption of 20 mA at 10 VDC. The light barrier is designed with a robust plastic housing, measures 8 mm in width, 25.1 mm in height, and 15.8 mm in depth, and is IP 67 rated for dust and water resistance. Additional features include LED indicators for power and alignment, teach-in and IO-Link for easy configuration, and protection against short circuits and reverse polarity. This device is ideal for applications requiring precise object detection and distance measurement in challenging industrial environments.
- Type:
- Light barrier
- Background position Sde:
- 25 180 mm
- Scanning range Sa:
- 90% ... 85% Sde
- Smallest object recognizable typ.:
- 0.5 mm
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- Teach-in and IO-Link
- Distance to focus:
- 160 mm
- Suppression of reciprocal influence:
- Yes
- Beam type:
- Point
- Alignment optical axis:
- < 1,5°Light source=Pulsed red laser diode
- Laser class:
- 1
- Wave length:
- 680 nm
- Response time / release time:
- < 0.25 ms (High Speed Mode)
- Jitter:
- < 0.06 ms (High Speed Mode)
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA (@ 10 VDC)
- Current consumption typ.:
- 10 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Sleeve smooth (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Protection class:
- IP 67
- Operating temperature:
- -20 +50 °C
