Description

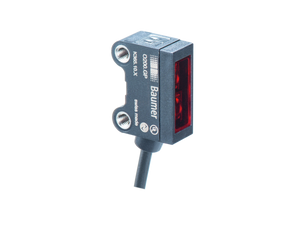

The Baumer O200.SL-NV1T.72NV/F160 11231166 is a high-precision light barrier equipped with a pulsed red laser diode, suitable for detecting the smallest objects with a typical size of 0.5 mm. It features a scanning range of 90% to 85% of the background position from 25 to 180 mm and a focused sensing distance of 160 mm. The device includes a green LED for power indication and a yellow LED for output status, with a flashing output indicator for alignment or lens soiling issues. It offers qTeach for easy sensing distance adjustment and is designed with a point beam type and an alignment optical axis of less than 1.5°. The laser is safe, classified as Class 1 with a wavelength of 680 nm. It operates within a voltage supply range of 10 to 30 VDC, consuming a maximum of 20 mA at 10 VDC and typically 10 mA at 24 VDC. The output function can operate in light or dark conditions, and the circuit is NPN complementary with a maximum output current of 50 mA. It includes safety features such as short circuit and reverse polarity protection. The sensor's compact, rectangular design measures 8 mm in width, 25.1 mm in height, and 15.8 mm in depth, with a smooth stainless steel sleeve for mechanical mounting and a durable plastic housing. It connects via a Flylead connector M8 4 pin with a 200 mm PVC cable and is rated IP 67 for protection against dust and water, suitable for operating temperatures from -20 to +50 °C.
