Description

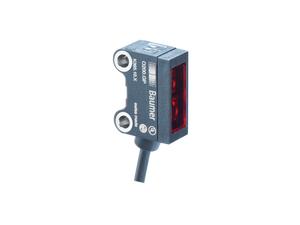

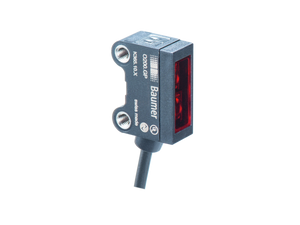

The Baumer O200.SL.T-PV1T.72NV/F160 11231169 is a light barrier designed for transparency object detection. It features a background position from 25 to 180 mm and a scanning range of 90% to 85% of the background position. The device ensures minimal signal attenuation of 10% and includes a green LED for power indication, along with a yellow LED output indicator that flashes to signal alignment or soiled lens issues. It offers a sensing distance adjustment through qTeach and a focused distance of 160 mm. The unit is equipped with a pulsed red laser diode light source, operating within a laser class 1 and emitting at a wavelength of 680 nm. It supports a voltage supply range of 10 to 30 VDC, with typical current consumption of 10 mA at 24 VDC and a maximum of 20 mA at 10 VDC. The output function can operate in light or dark conditions, and it features a PNP complementary output circuit with a maximum output current of 50 mA. Safety features include short circuit and reverse polarity protection. The sensor's compact design measures 8 mm in width, 25.1 mm in height, and 15.8 mm in depth, with a rectangular, smooth stainless steel sleeve for mechanical mounting and a durable plastic housing. It connects via a Flylead connector M8 4-pin, with a 200 mm PVC cable. Rated IP 67, it is robust against dust and water ingress, suitable for operating temperatures ranging from -20 to +50 °C.
