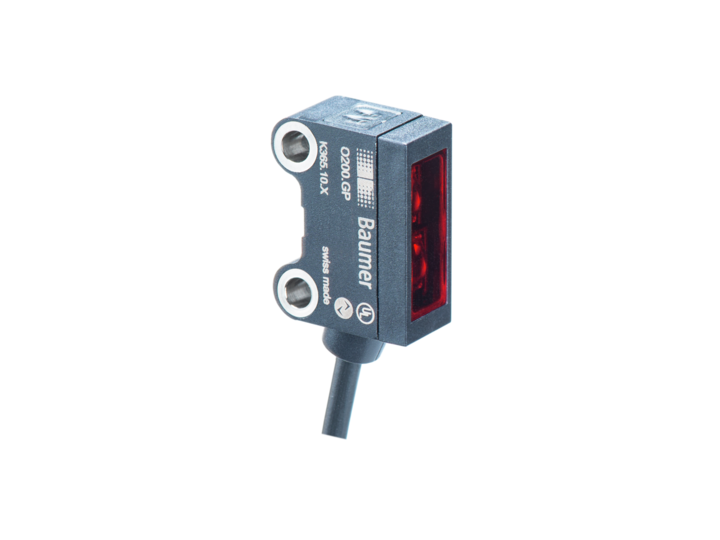

The Baumer O200.SP-NV1T.72NV 11210556 is a high-performance light barrier designed for standard object detection. It features a background position from 25 to 180 mm and a scanning range of 90% to 85% of the background position. The device can detect objects as small as 2.5 mm and includes a green LED for power indication and a yellow LED for output status. It offers a quick response time of less than 0.5 ms and operates on a voltage supply range of 10 to 30 VDC. The sensor is equipped with NPN complementary output and supports both light and dark operating modes. It includes safety features such as short circuit and reverse polarity protection. The sensor's compact design measures 8 mm in width, 25.1 mm in height, and 15.8 mm in depth, with a smooth stainless steel sleeve for mechanical mounting and a durable plastic housing. It is suitable for harsh environments with an IP67 protection rating and an operating temperature range of -25 to +50 °C. The sensor connects via a 200 mm long M8 4-pin flylead connector with a PVC cable.
- Type:
- Light barrier
- Version:
- Standard object detection
- Background position Sde:
- 25 180 mm
- Scanning range Sa:
- 90% ... 85% Sde
- Smallest object recognizable typ.:
- 2.5 mm
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- qTeach
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1,5°Light source=Pulsed PinPoint LED
- Wave length:
- 644 nm
- Response time / release time:
- < 0.5 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA (@ 10 VDC)
- Current consumption typ.:
- 16 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Sleeve smooth (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 4 pin, L=200 mm
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Protection class:
- IP 67
- Operating temperature:
- -25 +50 °C
