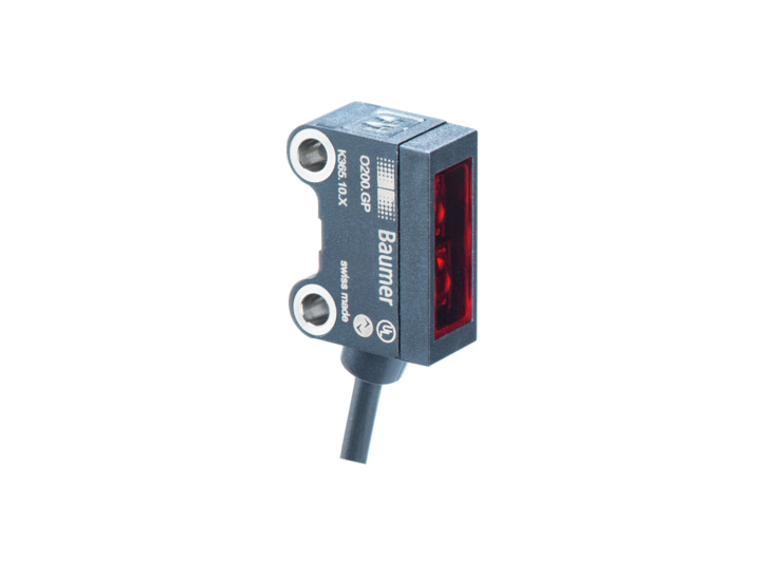

The Baumer O200.SP-PV1T.72NV 11210555 is a standard object detection light barrier featuring a background position from 25 to 180 mm and a scanning range of 90% to 85% of the background position. It can detect objects as small as 2.5 mm. This sensor includes a green LED for power indication and a yellow LED for output status, with a flashing output indicator for alignment or lens soiling. It uses a pulsed PinPoint LED with a wavelength of 644 nm and has a quick response time of less than 0.5 ms. The sensor operates on a voltage supply range of 10 to 30 VDC, with typical current consumption of 16 mA at 24 VDC. It features both light and dark operating modes, PNP complementary output circuit, and can handle an output current of 50 mA. The device is equipped with short circuit and reverse polarity protection. Its compact design measures 8 mm in width, 25.1 mm in height, and 15.8 mm in depth, with a smooth stainless steel sleeve for mechanical mounting and a durable plastic housing. It connects via a Flylead connector M8 4 pin and is suitable for harsh environments with an IP 67 protection rating and an operating temperature range of -25 to +50 °C.
- Type:
- Light barrier
- Version:
- Standard object detection
- Background position Sde:
- 25 180 mm
- Scanning range Sa:
- 90% ... 85% Sde
- Smallest object recognizable typ.:
- 2.5 mm
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- qTeach
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1,5°Light source=Pulsed PinPoint LED
- Wave length:
- 644 nm
- Response time / release time:
- < 0.5 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA (@ 10 VDC)
- Current consumption typ.:
- 16 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Sleeve smooth (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 4 pin, L=200 mm
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Protection class:
- IP 67
- Operating temperature:
- -25 +50 °C
