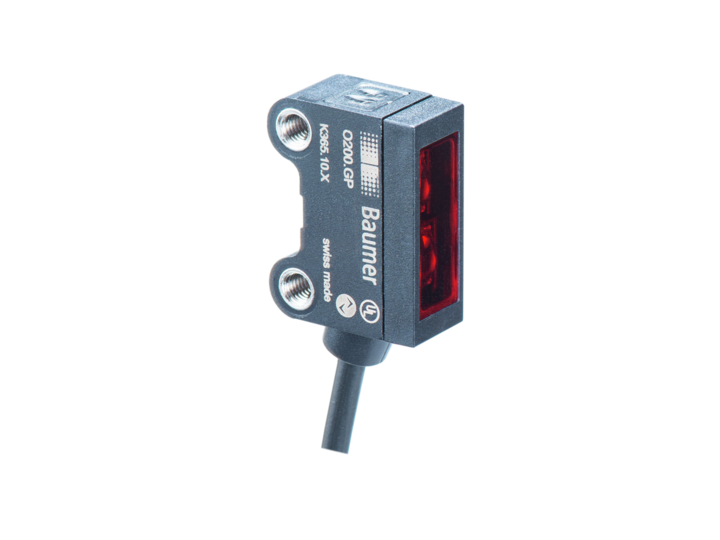

The Baumer O200.SP.T-GW1J.72CV/H006 11230713 is a high-performance light barrier designed for transparency object detection. It features a background position from 15 to 180 mm and a scanning range of 90% to 85% of the background position. The device ensures minimal signal attenuation of 5% and includes a green LED for power indication and a yellow LED for output status. It offers a quick response time of less than 0.25 ms in High Speed Mode and a jitter of less than 0.06 ms, making it highly reliable for fast operations. This sensor is equipped with a pulsed PinPoint LED with a wavelength of 644 nm and can operate within a voltage supply range of 10 to 30 VDC. It has a low current consumption and includes safety features such as short circuit and reverse polarity protection. The compact design with dimensions of 8 mm in width, 25.1 mm in length, and 15.8 mm in depth, along with threaded sleeves M3 for easy mounting, makes it versatile for various applications. The housing is made of durable plastic materials like ASA and PMMA, ensuring robustness in challenging environments. Additionally, the sensor supports both light and dark operating modes and features a push-pull output circuit capable of handling an output current of up to 50 mA. It is IP67 rated for protection against dust and water, making it suitable for use in a wide range of industrial settings. The sensor also supports Teach-in and IO-Link for easy configuration and integration into existing systems.
- Type:
- Light barrier
- Version:
- Transparency object detection
- Background position Sde:
- 15 180 mm
- Scanning range Sa:
- 90% ... 85% Sde
- Minimal signal attenuation:
- 5 %
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- Teach-in and IO-Link
- Suppression of reciprocal influence:
- Yes
- Beam type:
- Point
- Alignment optical axis:
- < 1,5°Light source=Pulsed PinPoint LED
- Wave length:
- 644 nm
- Response time / release time:
- < 0.25 ms (High Speed Mode) 0
- Jitter:
- < 0.06 ms (High Speed Mode)
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA (@ 10 VDC)
- Current consumption typ.:
- 16 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Threaded sleeves M3 (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Protection class:
- IP 67
- Operating temperature:
- -25 +50 °C
