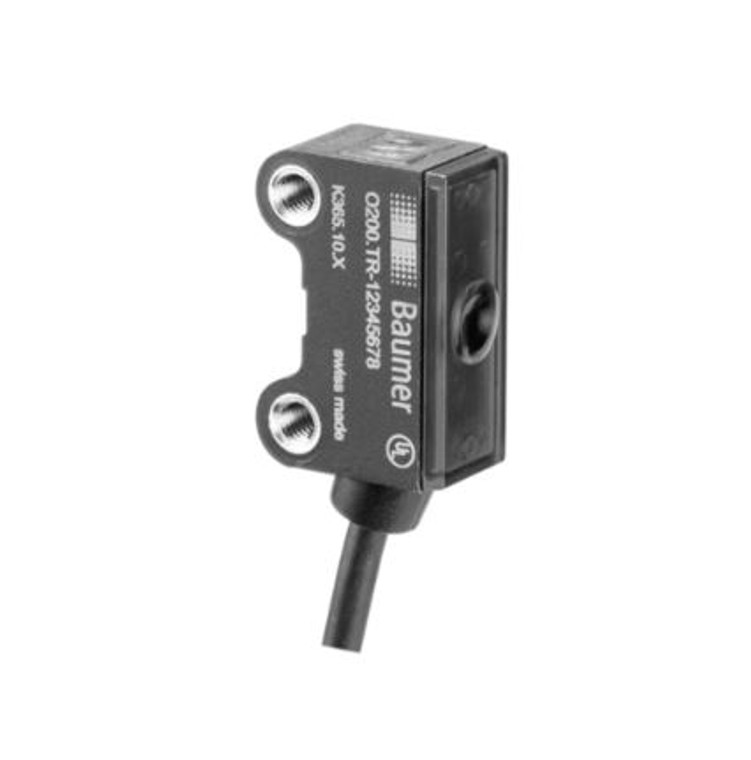

Miniature through-beam sensors
Due to the barrier principle, the most secure object detection is possible.
For disabling the transmitter diode, use the test input.
M3 threaded stainless steel bushes allow for quick installation.
Datasheet
Technical data
General data
| Type | Through beam sensor |
| Emitter / receiver | Emitter |
| Light source | Pulsed red LED |
| Actual range Sb | 5 m |
| Nominal range Sn | 6 m |
| Power on indication | LED green |
| Wave length | 644 nm |
| Alignment optical axis | < 1,5° |
Electrical data
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 20 mA (@ 30 VDC) |
| Current consumption typ. | 16 mA (@ 24 VDC) |
| Reverse polarity protection | Yes |
Mechanical data
| Width / diameter | 8 mm |
| Height / length | 25.1 mm |
| Depth | 14.1 mm |
| Type | Rectangular |
| Mechanical mounting | Threaded sleeves M3 (stainless steel) |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Flylead connector M8 4 pin, L=200 mm |
| Cable characteristics | PVC / PVC 4 x 0,08 mm² |
Ambient conditions
| Operating temperature | -25 … +50 °C |
| Protection class | IP 67 |
