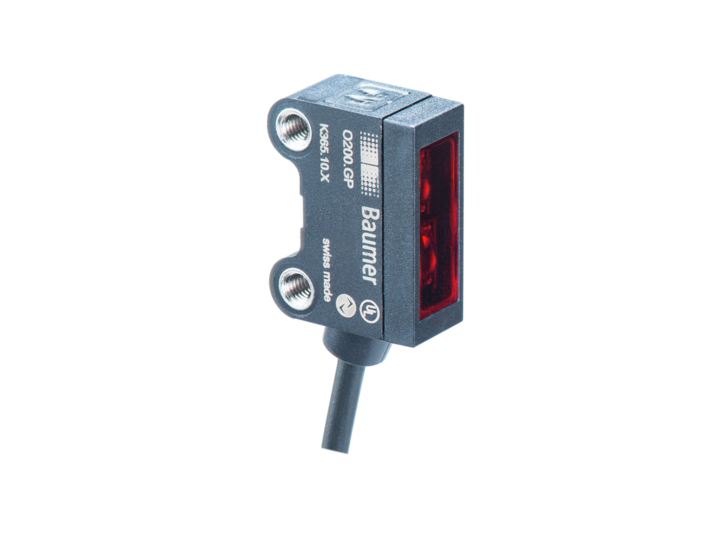

The Baumer O200.ZR-NV1T.72CV/E026_H006 11231267 is an intensity difference sensor with a sensing distance of 20 to 200 mm and can recognize objects as small as 2 mm at 100 mm. It features a green LED for power indication and a yellow LED as an output indicator, which flashes when the lens is misaligned or dirty. The sensor uses qTeach for easy sensing distance adjustment and includes suppression of reciprocal influence. It emits a pulsed red LED light source with a wavelength of 644 nm and boasts a quick response time of less than 0.25 ms. The sensor operates on a voltage supply range of 10 to 30 VDC and has a typical current consumption of 16 mA at 24 VDC. It offers both light and dark operating modes with NPN complementary output circuit and supports an output current of 50 mA. Safety features include short circuit and reverse polarity protection. The sensor's compact design measures 8 mm in width, 25.1 mm in length, and 15.8 mm in depth, with a rectangular, plastic housing and threaded sleeves M3 for mounting. It connects via a 4-pin, 2 m PVC cable and is rated IP 67 for protection against dust and water, suitable for operating temperatures from -25 to +50 °C.
- Type:
- Intensity difference
- Sensing distance Tw:
- 20 200 mm
- Smallest object recognizable typ.:
- 2 mm at 100 mm
- Power on indication:
- LED green
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- qTeach
- Suppression of reciprocal influence:
- Yes
- Beam type:
- Point
- Alignment optical axis:
- < 1,5°Light source=Pulsed red LED
- Wave length:
- 644 nm
- Response time / release time:
- < 0.25 ms
- Jitter:
- < 0.06 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA (@ 10 VDC)
- Current consumption typ.:
- 16 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Threaded sleeves M3 (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Protection class:
- IP 67
- Operating temperature:
- -25 +50 °C
