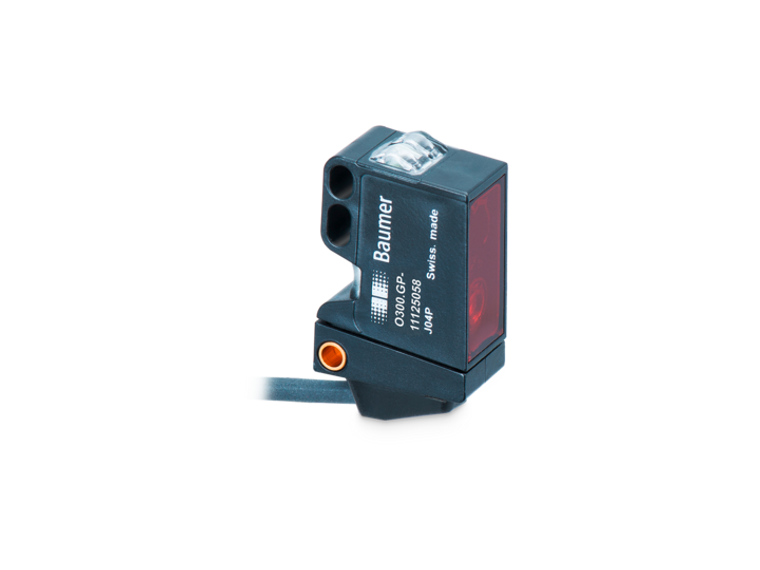

Baumer O300.DI-GM1J.72CU 11199080
Baumer
$316.30
The Baumer O300.DI-GM1J.72CU 11199080 is a high-precision distance measuring sensor with an IO-Link interface, offering a measuring range of 30 to 300 mm. It features teach-in and IO-Link adjustment options, and is equipped with a pulsed infrared diode light source with a wavelength of 860 nm. The sensor provides a resolution between 500 and 5000 µm and maintains linearity error within ±1.5 to 15 mm. It includes a green LED for power indication and a yellow LED as a light indicator. The device supports a fast response and release time of less than 0.49 ms, operates on a 10 to 30 VDC supply, and consumes a maximum of 45 mA with no load. It offers robust protection features including short circuit and reverse polarity protection, and is housed in a durable plastic casing with IP67 protection, making it suitable for harsh environments. The sensor's compact dimensions are 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, and it connects via a 4-pin, 2-meter cable. Suitable for a wide range of industrial applications, it operates efficiently within a temperature range of -25 to +60 °C.
- Type:
- Distance measuring
- Version:
- IO-Link measuring
- Measuring distance Sd:
- 30 300 mm
- Adjustment:
- Teach-in and IO-Link
- Power on indication:
- LED green
- Light indicator:
- LED yellow
- Resolution:
- 500 5000 µm
- Linearity error:
- ± 1.5 15 mm
- Beam type:
- Point
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°
- Temperature drift:
- < 0,2 % Sde/KLight source=Pulsed infrared diode
- Wave length:
- 860 nm
- Response time / release time:
- < 0.49 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 45 mA
- Voltage drop Vd:
- <3 VDC
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Protection class:
- IP 67
- Operating temperature:
- -25 +60 °C
