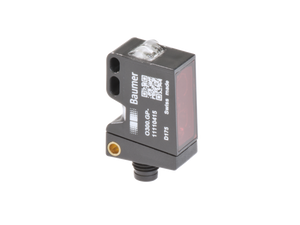

The Baumer O300.DP.2-GLUBO.72CU is a high-precision distance measuring sensor with a range of 20 to 300 mm and a measuring range of 280 mm. It features multiple accuracy settings, achieving repeat accuracy from ? 150 µm to ? 40 µm depending on the mode selected. The sensor offers a linearity error of ± 3% and a beam type of Point. It includes Teach-in and IO-Link for easy adjustment, and LED indicators for power and output status. The response time varies by mode, from less than 1.5 ms to less than 14 ms. It operates on a 12 to 30 VDC supply, with a maximum current consumption of 30 mA and a voltage drop of less than 2 VDC. The output circuit includes Analog 0 to 10 VDC and Push-pull / IO-Link with a maximum output current of 100 mA. Additional features include short circuit and reverse polarity protection, a robust plastic housing, and compliance with IP 67 for dust and water resistance. The sensor is designed to withstand harsh environmental conditions, with operating temperatures ranging from -25 to +60 °C and resistance to vibration and shock as per IEC standards.
- Type:
- Distance measuring
- Measuring distance Sd:
- 20 300 mm
- Measuring range Mr:
- 280 mm
- Adjustment:
- Teach-in and IO-Link
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Repeat accuracy:
- ? 150 4000 µm (Raw) ? 120 3000 µm (High Speed) ? 80 2000 µm (Standard) ? 40 1000 µm (High Accuracy)
- Linearity error:
- ± 3 % Mr
- Beam type:
- Point
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°
- Temperature drift:
- < 0,3 % Sde/KLight source=Pulsed PinPoint LED
- Wave length:
- 630 nm
- Response time / release time:
- < 1.5 ms (Raw) < 2.25 ms (High Speed Mode) < 4.5 ms (Standard Mode) < 14 ms (High Accuracy Mode)
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 30 mA
- Voltage drop Vd:
- <2 VDC
- Output circuit:
- Analog 0 ... 10 VDC Push-pull / IO-Link
- Output current:
- 100 mA (push-pull)
- Switching output:
- Light operate, switchable
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Protection class:
- IP 67
- Operating temperature:
- -25 +60 °C
- Storage temperature:
- -40 +70 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 50 g / 11 ms, 10 impulses per axis and direction
- Datasheet:
- View
