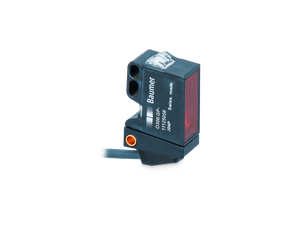

The Baumer O300.DP-GM1J.72CU 11199076 is a high-precision distance measuring sensor with an IO-Link interface, offering a measuring range of 30 to 300 mm. It features Teach-in and IO-Link adjustment options, and is equipped with a green LED for power indication and a yellow LED as a light indicator. The sensor provides a resolution between 500 and 5000 µm and maintains a linearity error of ±1.5 to 15 mm. It utilizes a pulsed PinPoint LED with a wavelength of 630 nm and has a quick response time of less than 0.49 ms. The device operates within a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 45 mA with no load. It includes safety features such as short circuit and reverse polarity protection, and is designed with a robust plastic housing (ASA, PMMA) with PMMA optics. The sensor's compact dimensions are 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, and it is IP 67 rated for protection against dust and water ingress. Suitable for a wide range of industrial applications, it operates effectively in temperatures ranging from -25 to +60 °C.
- Type:
- Distance measuring
- Version:
- IO-Link measuring
- Measuring distance Sd:
- 30 300 mm
- Adjustment:
- Teach-in and IO-Link
- Power on indication:
- LED green
- Light indicator:
- LED yellow
- Resolution:
- 500 5000 µm
- Linearity error:
- ± 1.5 15 mm
- Beam type:
- Point
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°
- Temperature drift:
- < 0,2 % Sde/KLight source=Pulsed PinPoint LED
- Wave length:
- 630 nm
- Response time / release time:
- < 0.49 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 45 mA
- Voltage drop Vd:
- <3 VDC
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Protection class:
- IP 67
- Operating temperature:
- -25 +60 °C
