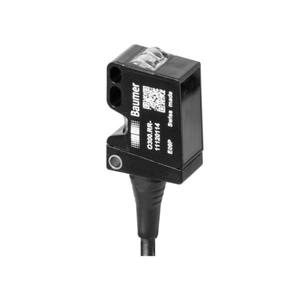

The Baumer O300.EL-PV1T.72CU 11181081 is a through beam sensor designed for precise object detection with an actual range of 40 m and a nominal range of 75 m. It features a receiver with a flashing light indicator for alignment or soiled lens detection and LED indicators for power status and operation mode. The sensor offers a quick response time of less than 0.49 ms and operates on a voltage supply range of 10 to 30 VDC. It includes PNP complementary outputs with light/dark operate functions and is equipped with short circuit and reverse polarity protection. The compact, rectangular design measures 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, with a durable plastic housing made from ASA and PMMA. The sensor is fitted with a 4-pin, 2 m cable connection and operates effectively within a temperature range of -25 to +60 °C. It is rated IP 67 for protection against dust and water ingress, making it suitable for a variety of industrial applications.
- Type:
- Through beam sensor
- Emitter / receiver:
- Receiver
- Actual range Sb:
- 40 m
- Nominal range Sn:
- 75 m
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- qTeach
- Alignment optical axis:
- < 2°
- Response time / release time:
- < 0.49 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <3 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP complementary
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Operating temperature:
- -25 +60 °C
- Protection class:
- IP 67
