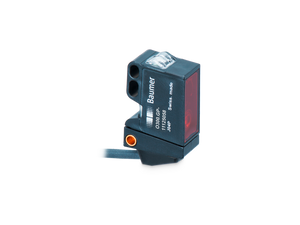

Baumer O300.GL-GW1J.72CU 11171740 is a background suppression sensor with a sensing distance of 30 to 250 mm and a repeat accuracy of less than 0.1 mm at laser focus. It features a pulsed red laser diode light source, laser class 1, and a wavelength of 656 nm. The sensor has a quick response time of less than 0.25 ms and operates on a voltage supply range of 11 to 30 VDC. It includes LED indicators for power and operation status, and offers both teach-in and IO-Link options for distance adjustment. The sensor is equipped with push-pull output circuitry, capable of handling an output current of 100 mA, and includes protections against short circuits and reverse polarity. Its compact, rectangular plastic housing measures 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, and is designed to withstand harsh environments with an IP 67 protection rating and an operating temperature range of -10 to +60 °C. The sensor connects via a 4-pin, 2-meter cable and is ideal for precise detection tasks in automated applications.
- Type:
- Background suppression
- Sensing distance Tw:
- 30 250 mm
- Sensing range Tb:
- 15 250 mm
- Repeat accuracy:
- < 0.1 mm at laser focus
- Power on indication:
- LED green
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- Teach-in and IO-Link
- Distance to focus:
- 80 mm
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°Light source=Pulsed red laser diode
- Laser class:
- 1
- Wave length:
- 656 nm
- Response time / release time:
- < 0.25 ms
- Voltage supply range +Vs:
- 11 30 VDC
- Current consumption max. (no load):
- 30 mA
- Current consumption typ.:
- 25 mA
- Voltage drop Vd:
- <2.5 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Protection class:
- IP 67
- Operating temperature:
- -10 +60 °C
