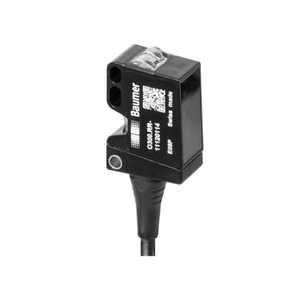

The Baumer O300.GL-GW1J.72CU/E023 11202036 is a high-performance optical sensor designed for precise and reliable object detection in a variety of industrial applications. This model features a compact design, making it ideal for use in limited space environments. It offers excellent background suppression capabilities and is equipped with a visible red light for easy alignment. The sensor also includes an adjustable sensitivity setting, ensuring optimal performance across different operational conditions. With its robust construction, the Baumer O300.GL-GW1J.72CU/E023 is suitable for challenging industrial environments, providing consistent and accurate detection for improved process efficiency.
- Resolution:
- 752 × 480 px
- Sensor type:
- 1/3? CMOS, monochrome
- Illumination:
- integrated, LED white
- LED class:
- risk group 1 (low risk, EN 62471:2008)
- High-resolution mode:
- max. 50 inspections per second
- High-speed mode (limited resolution):
- max. 100 inspections per second
- Object distance min.:
- 50 mm
- Number of jobs (products):
- ? 255
- Features per job:
- 32
- Signal processing:
- Baumer FEX® 4.0
- Defect image memory:
- 32
- Lens:
- 10 mm
- Voltage supply range +Vs:
- 18 30 V DC
- Power consumption:
- Typical 5 W (Imax = 1 A at 24 V)
- Digital inputs:
- 5 inputs (8 30 V) trigger job selection external teach-in encoders (CH-A, CH-B) 500 kHz
- Digital outputs:
- 5 outputs (PNP) Pass / Fail Flash Sync Alarm Camera Ready Output Enable
- Initial setup:
- Ethernet (10BASE-T / 100BASE-TX)
- Process interface:
- TCP/UDP (Ethernet)
- Visualization:
- web interface
- Width:
- 53 mm
- Height:
- 99.5 mm
- Depth:
- 38 mm
- Weight:
- ? 250 g
- Material:
- housing: aluminum cover glass: PMMA
