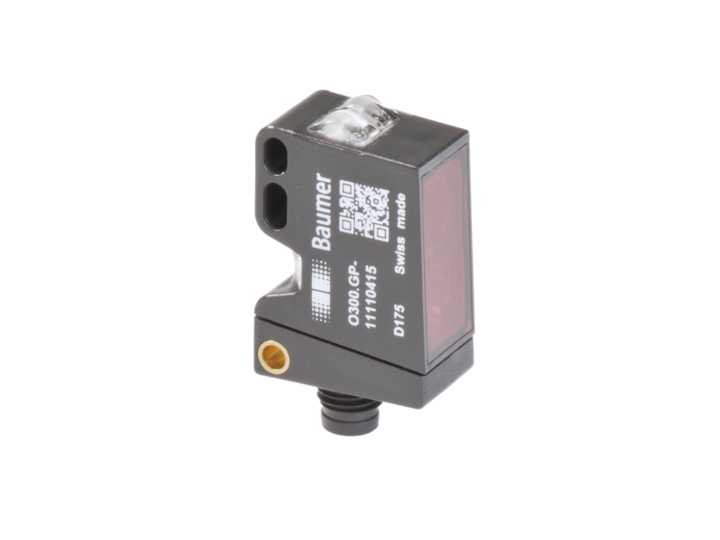

Baumer O300.GP-GW1J.72N/E022 11199039
Baumer
The Baumer O300.GP-GW1J.72N/E022 11199039 is a high-performance sensor with background suppression and a line beam type. It offers a sensing distance of 30 to 120 mm and a sensing range of 15 to 120 mm. Equipped with a pulsed PinPoint LED light source with a wavelength of 630 nm, it ensures precise detection with a response time of less than 1.5 ms. The sensor features a green LED for power indication and a yellow LED for status alerts. It supports both Teach-in and IO-Link for easy sensing distance adjustment and can suppress reciprocal influence. The output functions include light/dark operate with a push-pull output circuit and a maximum output current of 100 mA. It includes safety features such as short circuit and reverse polarity protection. The compact, rectangular design measures 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, with a durable plastic housing made of ASA and PMMA. The sensor is IP 67 rated for protection against dust and water ingress and operates within a temperature range of -25 to +60 °C. It connects via an M8 4-pin connector, ensuring a reliable and secure connection.
- Type:
- Background suppression
- Version:
- Line beam
- Sensing distance Tw:
- 30 120 mm
- Sensing range Tb:
- 15 120 mm
- Power on indication:
- LED green
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- Teach-in and IO-Link
- Suppression of reciprocal influence:
- Yes
- Beam type:
- Line
- Alignment optical axis:
- < 2°Light source=Pulsed PinPoint LED
- Wave length:
- 630 nm
- Response time / release time:
- < 1.5 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 45 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <3 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Protection class:
- IP 67
- Operating temperature:
- -25 +60 °C
