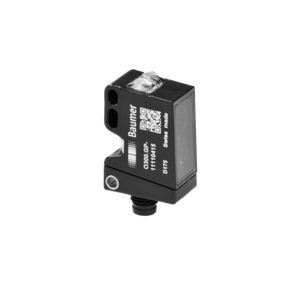

The Baumer O300.GP-NV1T.72N/T003 11135828 is a high-performance sensor with background suppression and a sensing distance ranging from 30 to 200 mm. It features a pulsed PinPoint LED light source with a wavelength of 630 nm and a quick response time of less than 0.49 ms. This sensor is equipped with both light and dark operating modes and offers NPN complementary output with a maximum output current of 100 mA. It includes safety features such as short circuit and reverse polarity protection. The sensor is designed in a compact, rectangular shape with dimensions of 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, and is constructed from durable plastic materials (ASA, PMMA) with a PMMA front optics. It connects via an M8 4-pin connector and is rated IP67, making it suitable for harsh environments. Operating temperatures range from -25 to +60 °C. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_O300.GP-NV1T.72N-T003_EN_20221110_DS.pdf?mediaPK=9056150126622).
- Type:
- Background suppression
- Sensing distance Tw:
- 30 200 mm
- Sensing range Tb:
- 15 200 mm
- Power on indication:
- LED green
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- qTeach / 1-Step Teach-in
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°Light source=Pulsed PinPoint LED
- Wave length:
- 630 nm
- Response time / release time:
- < 0.49 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 45 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <3 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN complementary
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Protection class:
- IP 67
- Operating temperature:
- -25 +60 °C
- Datasheet:
- View
