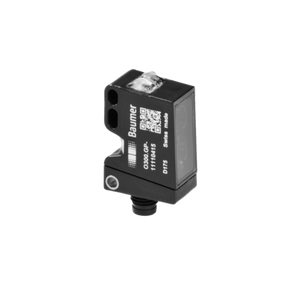

The Baumer O300.GP-PV1T.72N/T003 11135850 is a high-performance sensor with background suppression and a sensing distance of 30 to 200 mm. It features a pulsed PinPoint LED light source with a wavelength of 630 nm and a quick response time of less than 0.49 ms. This sensor is equipped with a green LED for power indication and a yellow LED for light indication. It offers easy sensing distance adjustment through qTeach and 1-Step Teach-in, and includes features like suppression of reciprocal influence and alignment of the optical axis under 2°. The sensor operates on a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 45 mA. It supports both light and dark operating modes with PNP complementary output circuit and can handle an output current of 100 mA. Safety features include short circuit and reverse polarity protection. The sensor's compact design measures 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, with a housing made of durable plastic (ASA, PMMA) and a PMMA front optics. It connects via an M8 4-pin connector and is rated IP 67 for protection against dust and water, making it suitable for a wide range of industrial applications. Operating temperatures range from -25 to +60 °C.
- Type:
- Background suppression
- Sensing distance Tw:
- 30 200 mm
- Sensing range Tb:
- 15 200 mm
- Power on indication:
- LED green
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- qTeach / 1-Step Teach-in
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°Light source=Pulsed PinPoint LED
- Wave length:
- 630 nm
- Response time / release time:
- < 0.49 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 45 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <3 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP complementary
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Protection class:
- IP 67
- Operating temperature:
- -25 +60 °C
- Datasheet:
- View
