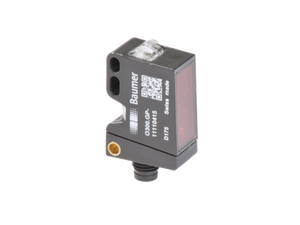

The Baumer O300.GR-GW1T.72N 11110414 is a high-performance sensor with background suppression and a sensing distance ranging from 30 to 300 mm. It features a pulsed red LED light source with a wavelength of 630 nm and a quick response time of less than 1 ms. The sensor is equipped with a green LED for power indication and a yellow LED for light indication. It offers easy sensing distance adjustment via qTeach and includes features like suppression of reciprocal influence, short circuit protection, and reverse polarity protection. The sensor operates within a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 45 mA. It supports both light and dark operating modes with a push-pull output circuit and can handle an output current of up to 100 mA. The compact, rectangular design measures 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, with a housing made of durable plastic (ASA, PMMA) and a PMMA front optics. It includes a connector M8 4 pin for connections and is rated IP 67 for protection against dust and water ingress, making it suitable for harsh environments. The operating temperature range is from -25 to +60 °C.
- Type:
- Background suppression
- Sensing distance Tw:
- 30 300 mm
- Sensing range Tb:
- 15 300 mm
- Power on indication:
- LED green
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- qTeach
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°Light source=Pulsed red LED
- Wave length:
- 630 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 45 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <3 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Protection class:
- IP 67
- Operating temperature:
- -25 +60 °C
