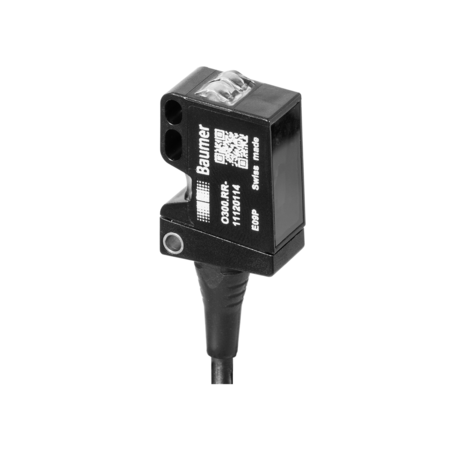

Baumer O300.GR-PV1T.72CU/T003 11135883
Baumer
The Baumer O300.GR-PV1T.72CU/T003 11135883 is a high-performance sensor with background suppression and a sensing distance ranging from 30 to 300 mm. It features a pulsed red LED light source with a wavelength of 630 nm and a quick response time of less than 1 ms. The sensor is equipped with LED indicators for power (green) and operation status (yellow), and offers easy distance adjustment via qTeach/1-Step Teach-in. It supports PNP complementary output with a maximum output current of 100 mA and includes protection against short circuits and reverse polarity. The compact, rectangular design measures 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, housed in durable plastic (ASA, PMMA) with a PMMA front optics. It connects via a 4-pin, 2-meter cable and is rated IP 67 for water and dust resistance, suitable for operating temperatures from -25 to +60 °C.
- Type:
- Background suppression
- Sensing distance Tw:
- 30 300 mm
- Sensing range Tb:
- 15 300 mm
- Power on indication:
- LED green
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- qTeach / 1-Step Teach-in
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°Light source=Pulsed red LED
- Wave length:
- 630 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 45 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <3 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP complementary
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Protection class:
- IP 67
- Operating temperature:
- -25 +60 °C
