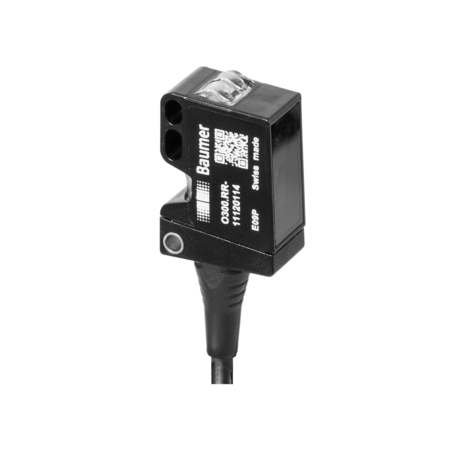

Baumer O300.RL-GW1J.72CU 11172767
Baumer
The Baumer O300.RL-GW1J.72CU 11172767 is a retro-reflective sensor equipped with a pulsed red laser diode, offering a nominal range of 6 meters and an actual range of 5 meters. It features high repeat accuracy of 0.2 mm at 500 mm and includes a polarization filter. The sensor is designed with both yellow LED light indicators for operation and green LEDs for power status. Sensitivity can be adjusted via Teach-in and IO-Link. Safe for various applications, it operates with a Class 1 laser, emitting light at a wavelength of 656 nm. The sensor ensures quick response and release times of less than 0.1 ms, operates on a voltage supply range of 11 to 30 VDC, and has a maximum current consumption of 30 mA. It supports both light and dark operating modes with a push-pull output circuit and includes short circuit and reverse polarity protection. The compact, rectangular design measures 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, constructed from durable plastic materials (ASA, PMMA) with a PMMA front optics. It connects via a 4-pin, 2-meter cable and operates effectively in temperatures ranging from -10 to +60 °C. The sensor is rated IP 67 for protection against dust and water ingress.
- Type:
- Retro-reflective sensor
- Light source:
- Pulsed red laser diode
- Actual range Sb:
- 5 m
- Nominal range Sn:
- 6 m
- Repeat accuracy:
- 0.2 mm at 500 mm
- Polarization filter:
- Yes
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- Teach-in and IO-Link
- Laser class:
- 1
- Distance to focus:
- Parallel beam
- Wave length:
- 656 nm
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°
- Response time / release time:
- < 0.1 ms
- Voltage supply range +Vs:
- 11 30 VDC
- Current consumption max. (no load):
- 30 mA
- Current consumption typ.:
- 25 mA
- Voltage drop Vd:
- <2.5 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
