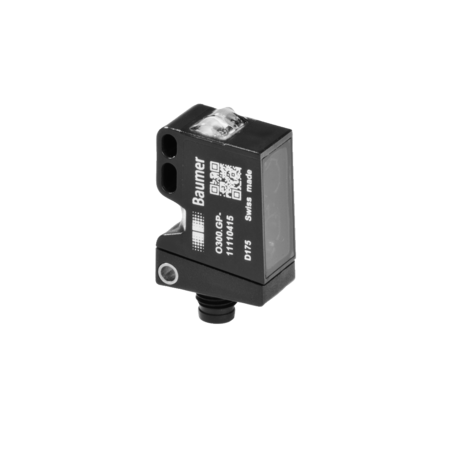

Baumer O300.RL-NV1T.72N 11172801 is a retro-reflective sensor equipped with a pulsed red laser diode. It features a nominal range of 6 meters and an actual range of 5 meters, with repeat accuracy of 0.2 mm at 500 mm. The sensor includes a polarization filter, LED indicators for power and operation status, and qTeach for sensitivity adjustment. It operates with a laser class 1 and emits light at a wavelength of 656 nm. The sensor's response time is less than 0.1 ms, and it supports a voltage supply range of 11 to 30 VDC. It offers both light and dark operating modes through NPN complementary output circuits and includes short circuit and reverse polarity protection. The compact, rectangular design measures 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, with a housing made from durable plastic materials. It connects via an M8 4-pin connector and operates within a temperature range of -10 to +60 °C. The sensor is rated IP 67 for protection against dust and water ingress.
- Type:
- Retro-reflective sensor
- Light source:
- Pulsed red laser diode
- Actual range Sb:
- 5 m
- Nominal range Sn:
- 6 m
- Repeat accuracy:
- 0.2 mm at 500 mm
- Polarization filter:
- Yes
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- qTeach
- Laser class:
- 1
- Distance to focus:
- Parallel beam
- Wave length:
- 656 nm
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°
- Response time / release time:
- < 0.1 ms
- Voltage supply range +Vs:
- 11 30 VDC
- Current consumption max. (no load):
- 30 mA
- Current consumption typ.:
- 25 mA
- Voltage drop Vd:
- <2.5 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN complementary
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
