Description

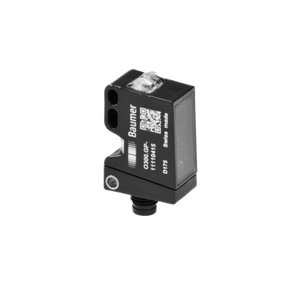

The Baumer O300.RP.T-GW1J.72CU 11157331 is a retro-reflective sensor designed for transparency object detection. It features a pulsed PinPoint LED light source with a wavelength of 630 nm and includes a polarization filter to minimize signal attenuation (10% / 20% / 30%). The sensor has an actual range of 3.5 m and a nominal range of 4 m. It offers both light and dark operating modes with a push-pull output circuit and can handle an output current of 100 mA. Key features include short circuit and reverse polarity protection, sensitivity adjustment via Teach-in and IO-Link, and a fast response time of less than 0.25 ms. The device is housed in a rectangular, plastic body (ASA, PMMA) with dimensions of 12.9 mm in width, 32.3 mm in height, and 23 mm in depth. It operates within a voltage supply range of 10 to 30 VDC and has a typical current consumption of 30 mA. The sensor is equipped with LED indicators for power and operation status and can function in temperatures ranging from -25 to +60 °C. It is IP 67 rated, ensuring protection against dust and water ingress. Connection is facilitated through a 4-pin, 2 m cable.
