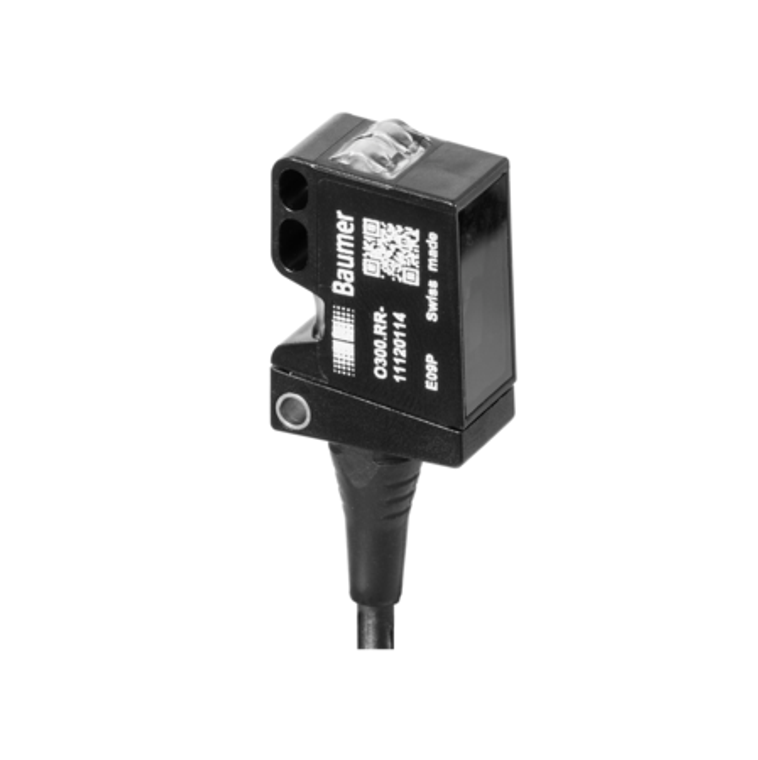

The Baumer O300.RR-GL1Z.72CU 11120114 is a retro-reflective sensor equipped with a pulsed red LED light source, featuring a nominal range of 5 meters and an actual range of 4 meters. It includes a polarization filter and suppression of reciprocal influence to enhance detection accuracy. The sensor has a quick response time of less than 0.49 ms and operates within a voltage supply range of 10 to 30 VDC. It consumes a typical current of 30 mA and has a maximum output current of 100 mA. The unit is designed with a rectangular, plastic housing (ASA, PMMA) and a PMMA front optics. It offers a variety of protections including short circuit and reverse polarity protection. The sensor operates effectively in temperatures ranging from -25 to +60 °C and is IP 67 rated for dust and water resistance. It connects via a 4-pin, 2-meter cable.
- Type:
- Retro-reflective sensor
- Light source:
- Pulsed red LED
- Actual range Sb:
- 4 m
- Nominal range Sn:
- 5 m
- Polarization filter:
- Yes
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- No
- Wave length:
- 630 nm
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°
- Response time / release time:
- < 0.49 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 30 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <3 VDC
- Output function:
- Light operate
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Operating temperature:
- -25 +60 °C
- Protection class:
- IP 67
