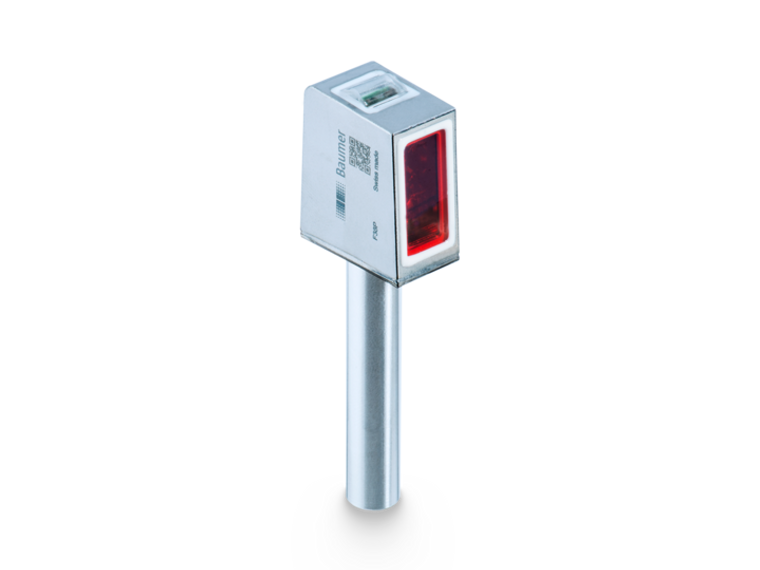

The Baumer O300H.DP-GM1J.PVCV 11219272 is a high-performance distance measuring sensor with a range of 30 to 300 mm. It features IO-Link measuring capabilities, Teach-in adjustment, and a pulsed PinPoint LED light source with a wavelength of 630 nm. The sensor offers a resolution between 0.5 and 5 mm and maintains linearity with an error margin of ±1.5 to 15 mm. It includes a green LED for power indication and a yellow LED as a light indicator. The device is designed with a robust stainless steel housing, PMMA front optics, and is equipped with short circuit and reverse polarity protection. It operates within a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 45 mA. The sensor's compact dimensions are 16.5 mm in width, 34.6 mm in height, and 28.7 mm in depth, and it is protected against harsh conditions with an IP 68/69K rating and proTect+ sealing. Suitable for a variety of applications, the sensor operates efficiently within a temperature range of -25 to +60 °C.
- Type:
- Distance measuring
- Version:
- IO-Link measuring
- Measuring distance Sd:
- 30 300 mm
- Adjustment:
- Teach-in and IO-Link
- Power on indication:
- LED green
- Light indicator:
- LED yellow
- Resolution:
- 0.5 5 mm
- Linearity error:
- ± 1.5 15 mm
- Beam type:
- Point
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°
- Temperature drift:
- < 0,2 % Sde/K
- Approvals/certificates:
- Ecolab Adapted from EHEDGLight source=Pulsed PinPoint LED
- Wave length:
- 630 nm
- Response time / release time:
- < 0.49 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 45 mA
- Voltage drop Vd:
- <3 VDC
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 16.5 mm
- Height / length:
- 34.6 mm
- Depth:
- 28.7 mm
- Design:
- Rectangular
- Housing material:
- Stainless steel 1.4404 (V4A)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Protection class:
- IP 68/69K & proTect+
- Operating temperature:
- -25 +60 °C
- Datasheet:
- View
- Operating Manual:
- View
-
-
-
