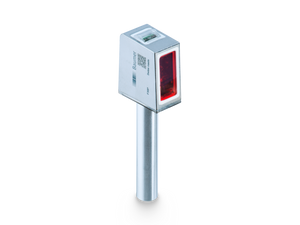

The Baumer O300H.DP-GM1J.PVNV 11222503 is a high-precision distance measuring sensor equipped with IO-Link technology, offering a measuring range of 30 to 300 mm. It features a teach-in adjustment and IO-Link for easy configuration, complemented by a green LED for power indication and a yellow LED as a light indicator. The sensor provides a resolution between 0.5 and 5 mm and maintains linearity with an error margin of ±1.5 to 15 mm. It operates with a pulsed PinPoint LED light source at a wavelength of 630 nm and responds quickly with a time of less than 0.49 ms. Designed for durability, it has a stainless steel housing, PMMA front optics, and is rated IP 68/69K for high-level protection against dust and water ingress. The compact device measures 16.5 mm in width, 34.6 mm in height, and 28.7 mm in depth, making it suitable for various industrial applications. It supports a voltage supply range of 10 to 30 VDC and includes safety features such as short circuit and reverse polarity protection.
- Type:
- Distance measuring
- Version:
- IO-Link measuring
- Measuring distance Sd:
- 30 300 mm
- Adjustment:
- Teach-in and IO-Link
- Power on indication:
- LED green
- Light indicator:
- LED yellow
- Resolution:
- 0.5 5 mm
- Linearity error:
- ± 1.5 15 mm
- Beam type:
- Point
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°
- Temperature drift:
- < 0,2 % Sde/K
- Approvals/certificates:
- Ecolab Adapted from EHEDGLight source=Pulsed PinPoint LED
- Wave length:
- 630 nm
- Response time / release time:
- < 0.49 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 45 mA
- Voltage drop Vd:
- <3 VDC
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 16.5 mm
- Height / length:
- 34.6 mm
- Depth:
- 28.7 mm
- Design:
- Rectangular
- Housing material:
- Stainless steel 1.4404 (V4A)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 4 pin, L=200 mm
- Protection class:
- IP 68/69K & proTect+
- Operating temperature:
- -25 +60 °C
- Datasheet:
- View
- Operating Manual:
- View
-
-
-
