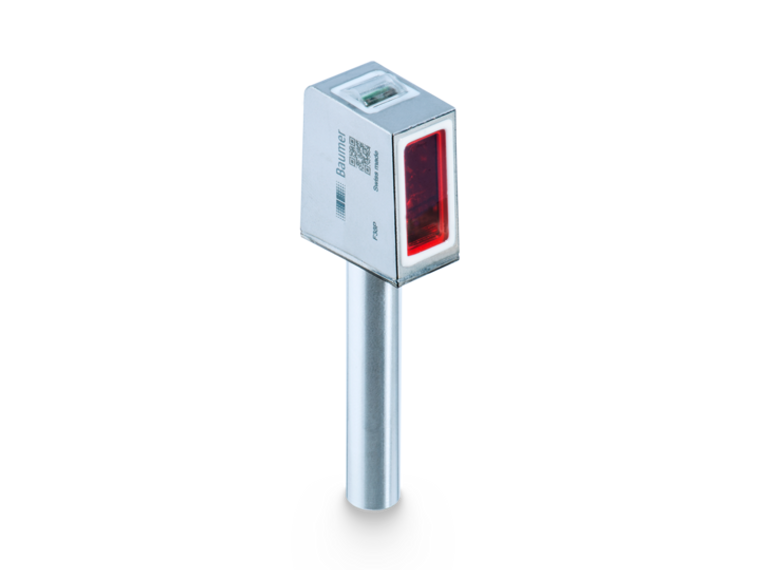

Baumer O300H.RP-GW1J.PVCV

Baumer O300H.RP-GW1J.PVCV

Baumer
SKU:
11127753
Availability:
Contact us to confirm availability and lead times.
$450.80
Condition:
New
Current Stock:
Description
The Baumer O300H.RP-GW1J.PVCV is a retro-reflective sensor designed for hygienic applications, featuring a pulsed PinPoint LED with a wavelength of 630 nm. It offers a real range of 5 meters and a nominal range of 6 meters. Equipped with a polarization filter, this sensor minimizes reciprocal influence and ensures precise alignment with an optical axis deviation of less than 2°. It has a fast response and release time of less than 0.49 ms. The sensor operates on a voltage supply range of 10 to 30 VDC, with typical current consumption of 25 mA and a maximum of 35 mA. It includes short circuit and reverse polarity protection, and can operate in light or dark modes with a push-pull output circuit supporting up to 100 mA output current. The compact, rectangular stainless steel housing measures 16.5 mm in width, 34.6 mm in length, and 28.7 mm in depth, with a PMMA front optics. It connects via a 4-pin, 2-meter cable and operates in temperatures ranging from -25 to +60 °C. The sensor is highly durable, rated IP 68/69K and proTect+ for superior protection against harsh environmental conditions.
Additional Information
Type:
Retro-reflective sensor
Special type:
Hygienic design
Light source:
Pulsed PinPoint LED
Actual range Sb:
5 m
Nominal range Sn:
6 m
Polarization filter:
Yes
Light indicator:
LED yellow
Power on indication:
LED green
Sensitivity adjustment:
Teach-in and IO-Link
Wave length:
630 nm
Suppression of reciprocal influence:
Yes
Alignment optical axis:
< 2°
Approvals/certificates:
Ecolab Adapted from EHEDG
Response time / release time:
< 0.49 ms
Voltage supply range +Vs:
10 … 30 VDC
Current consumption max. (no load):
35 mA
Current consumption typ.:
25 mA
Voltage drop Vd:
<3 VDC
Output function:
Light / dark operate
Output circuit:
Push-pull
Output current:
100 mA
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Width / diameter:
16.5 mm
Height / length:
34.6 mm
Depth:
28.7 mm
Design:
Rectangular
Housing material:
Stainless steel 1.4404 (V4A)
Front (optics):
PMMA
Connection types:
Cable 4 pin, 2 m
Operating temperature:
-25 … +60 °C
Protection class:
IP 68/69K & proTect+
Datasheet:
View
