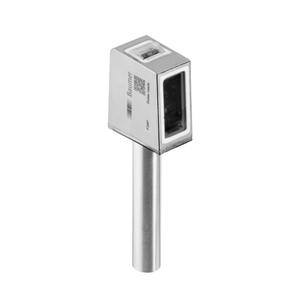

The Baumer O300H.SL-GW1J.PVNV 11179008 is a high-performance light barrier designed for standard object detection in hygienic environments. It features a pulsed red laser diode with a wavelength of 656 nm and operates within a voltage supply range of 11 to 30 VDC. This sensor offers a background position from 30 to 250 mm and a scanning range of 90% to 85% of the specified distance. It ensures precise detection with repeat accuracy of less than 0.1 mm at 100 mm and a quick response time of less than 0.25 ms. Equipped with both teach-in and IO-Link capabilities for easy sensing distance adjustment, the device also includes LED indicators for power and status alerts. The output functions can operate in light or dark conditions with a push-pull output circuit and supports a maximum output current of 100 mA. Safety features include short circuit, reverse polarity protection, and suppression of reciprocal influence. The robust stainless steel housing (1.4404 V4A) with a PMMA front optics ensures durability and compliance with Ecolab standards and EHEDG guidelines, suitable for stringent hygienic applications. The sensor is IP 68/69K rated and proTect+ certified, making it resistant to harsh cleaning processes and suitable for a wide range of operating temperatures from -10 to +60 °C. The compact design measures 16.5 mm in width, 34.6 mm in height, and 28.7 mm in depth, facilitating easy integration into various setups. Connection is facilitated via a flylead connector M8, with a length of 200 mm.
- Type:
- Light barrier
- Special type:
- Hygienic design
- Version:
- Standard object detection
- Background position Sde:
- 30 250 mm
- Scanning range Sa:
- 90% ... 85% Sde
- Repeat accuracy:
- < 0.1 mm at 100 mm
- Power on indication:
- LED green
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- Teach-in and IO-Link
- Distance to focus:
- 400 mm
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°
- Approvals/certificates:
- Ecolab Adapted from EHEDGLight source=Pulsed red laser diode
- Laser class:
- 1
- Wave length:
- 656 nm
- Response time / release time:
- < 0.25 ms
- Voltage supply range +Vs:
- 11 30 VDC
- Current consumption max. (no load):
- 30 mA
- Current consumption typ.:
- 25 mA
- Voltage drop Vd:
- <2.5 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 16.5 mm
- Height / length:
- 34.6 mm
- Depth:
- 28.7 mm
- Design:
- Rectangular
- Housing material:
- Stainless steel 1.4404 (V4A)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8, L=200 mm
- Protection class:
- IP 68/69K & proTect+
- Operating temperature:
- -10 +60 °C
- Datasheet:
- View
- Operating Manual:
- View
