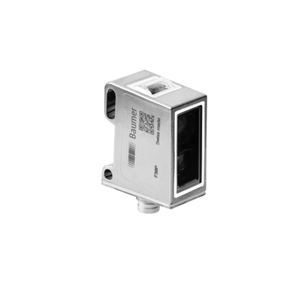

The Baumer O300W.ER-GW1B.PVN 11167301 is a through beam sensor receiver designed for demanding environments with a washdown design. It features a maximum actual range of 10 meters and a nominal range of 15 meters. The sensor includes a flashing light and LED indicators for alignment and power status, and offers sensitivity adjustments via qTeach or remote. It has a quick response time of less than 0.49 ms and operates within a voltage supply range of 10 to 30 VDC. The device consumes a maximum of 40 mA with a typical consumption of 30 mA and includes a voltage drop of less than 3 VDC. It supports both light and dark operating modes with a push-pull output circuit and can handle an output current of up to 100 mA. Safety features include short circuit and reverse polarity protection. The sensor's compact, rectangular stainless steel housing measures 16.5 mm in width, 34.7 mm in length, and 28.2 mm in depth, with a PMMA front optics. It connects via an M8 4-pin connector and operates in temperatures ranging from -25 to +60 °C. The sensor is highly durable, rated IP 68/69K and proTect+, and is Ecolab approved.
- Type:
- Through beam sensor
- Special type:
- Washdown design
- Emitter / receiver:
- Receiver
- Actual range Sb:
- 10 m
- Nominal range Sn:
- 15 m
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- qTeach / remote
- Alignment optical axis:
- < 2°
- Approvals/certificates:
- Ecolab
- Response time / release time:
- < 0.49 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <3 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 16.5 mm
- Height / length:
- 34.7 mm
- Depth:
- 28.2 mm
- Design:
- Rectangular
- Housing material:
- Stainless steel 1.4404 (V4A)
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -25 +60 °C
- Protection class:
- IP 68/69K & proTect+
