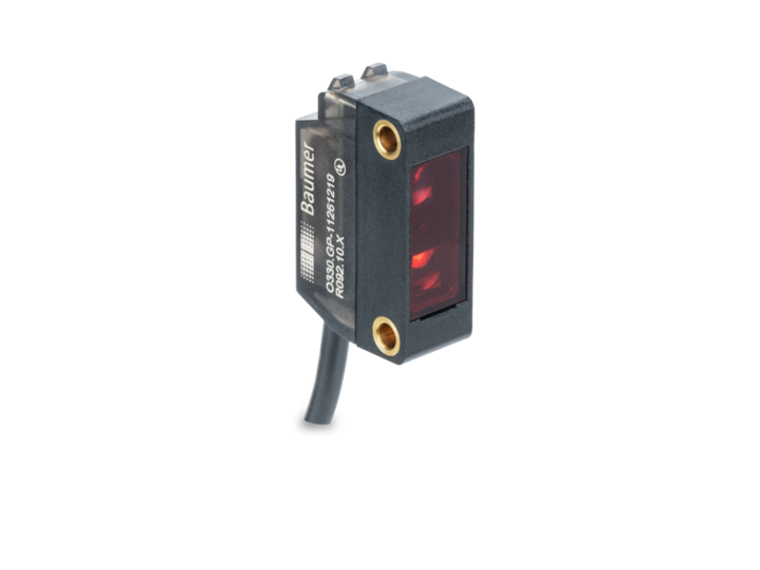

The Baumer O330.EP-PDPVZ.72ZV/H006 is a through beam sensor designed for precise object detection with a receiver component. It offers an actual range of 10 meters and a nominal range of 12 meters. Key features include a flashing output indicator for alignment or soiled lens detection, LED indicators for power status and output, and no sensitivity adjustment required. This model supports suppression of reciprocal influence, ensuring reliable operation in complex environments. It has a fast response and release time of less than 0.8 ms, operates on a voltage supply range of 10 to 30 VDC, and includes safety features like short circuit and reverse polarity protection. The sensor is housed in a durable plastic casing with dimensions of 11 mm in width, 32 mm in height, and 21 mm in depth, and is equipped with threaded sleeves M3 for easy mounting. It connects via a 4-pin, 2-meter PVC cable and operates within a temperature range of -25 to +55 °C. The device is IP 67 rated, indicating a high level of protection against dust and water ingress, making it suitable for a variety of industrial applications.
- Type:
- Through beam sensor
- Emitter / receiver:
- Receiver
- Actual range Sb:
- 10 m
- Nominal range Sn:
- 12 m
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- No
- Suppression of reciprocal influence:
- Yes
- Response time / release time:
- < 0.8 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 50 mA
- Current consumption typ.:
- 25 mA
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP complementary
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 11 mm
- Height / length:
- 32 mm
- Depth:
- 21 mm
- Design:
- Rectangular
- Mechanical mounting:
- Threaded sleeves M3 (brass)
- Housing material:
- Plastic (ABS, ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Cable characteristics:
- PVC / PVC 4 x 0.14 mm²
- Operating temperature:
- -25 +55 °C
- Protection class:
- IP 67
- Storage temperature:
- -40 +70 °C
