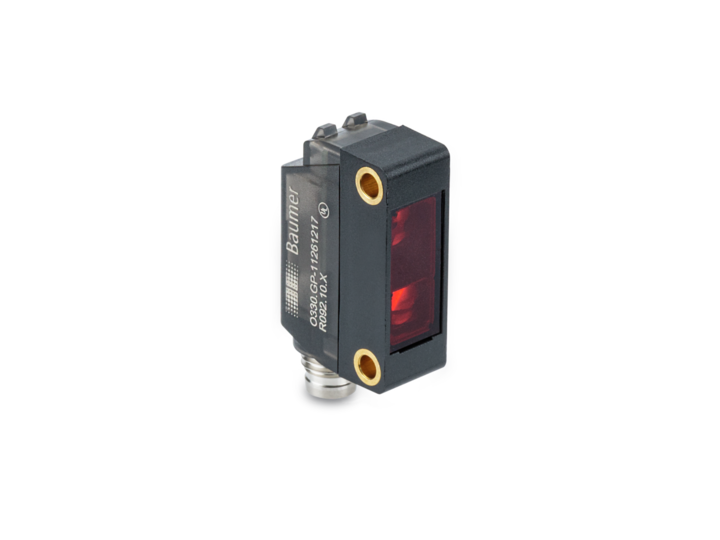

Baumer O330.GP-PLPVT.72N/E022_T003
Baumer
The Baumer O330.GP-PLPVT.72N/E022_T003 is a high-performance sensor with background suppression and a line beam for precise detection. It offers a sensing distance of 20 to 250 mm and a sensing range of 8 to 275 mm. Equipped with a pulsed PinPoint LED light source with a wavelength of 634 nm, it ensures high visibility and accuracy. The sensor features quick response and release times of less than 2.5 ms, operates on a voltage supply range of 10 to 30 VDC, and includes both short circuit and reverse polarity protection. It has a compact, rectangular design with dimensions of 11 mm in width, 32 mm in height, and 21 mm in depth, and is housed in durable plastic with PMMA optics. The sensor is designed for easy installation with a smooth brass sleeve and connects via an M8 4-pin connector. It is rated IP67 for protection against dust and water ingress and can operate in temperatures ranging from -25 to +55 °C. The sensor is also robust against vibration and shock, complying with IEC standards.
- Type:
- Background suppression
- Version:
- Line beam
- Sensing distance Tw:
- 20 250 mm
- Sensing range Tb:
- 8 275 mm
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- qTeach / 1-Step Teach-in
- Suppression of reciprocal influence:
- Yes
- Beam type:
- Line
- Alignment optical axis:
- < 1,5°Light source=Pulsed PinPoint LED
- Wave length:
- 634 nm
- Response time / release time:
- < 2.5 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 50 mA
- Current consumption typ.:
- 25 mA
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP complementary
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 11 mm
- Height / length:
- 32 mm
- Depth:
- 21 mm
- Design:
- Rectangular
- Mechanical mounting:
- Sleeve smooth (brass)
- Housing material:
- Plastic (ABS, ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Protection class:
- IP 67
- Operating temperature:
- -25 +55 °C
- Storage temperature:
- -40 +70 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 50 g / 11 ms, 10 impulses per axis and direction
