Baumer

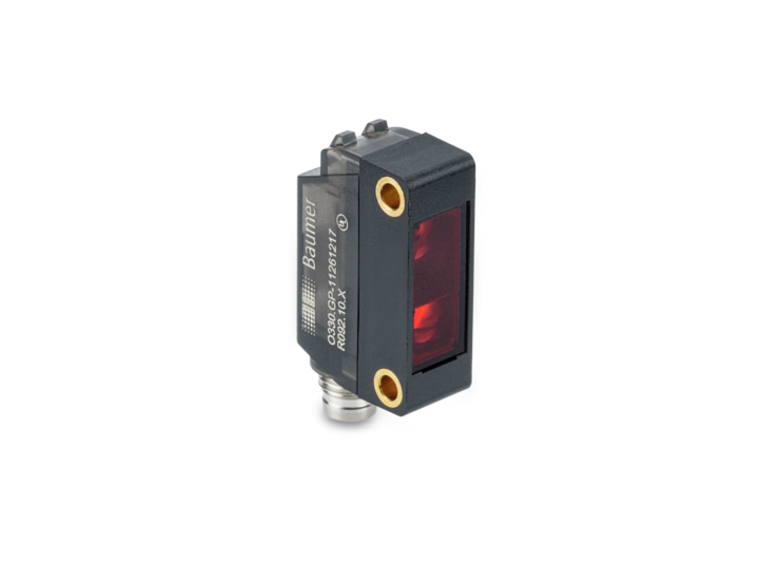

Baumer O330.GP-PLPVT.72N/H006_T003

(No reviews yet) Write a Review

Write a Review

Baumer

Baumer O330.GP-PLPVT.72N/H006_T003

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

11261218

UPC:

MPN:

11261218

Condition:

New

Type:

Background suppression

Sensing distance Tw:

20 … 350 mm

Sensing range Tb:

8 … 385 mm

Power on indication:

LED green

Output indicator:

LED yellow

Sensing distance adjustment:

qTeach / 1-Step Teach-in

Suppression of reciprocal influence:

Yes

Alignment optical axis:

< 1,5°Light source=Pulsed PinPoint LED

Wave length:

634 nm

Response time / release time:

< 1 ms

Voltage supply range +Vs:

10 … 30 VDC

Current consumption max. (no load):

50 mA

Current consumption typ.:

25 mA

Voltage drop Vd:

<2 VDC

Output function:

Light / dark operate

Output circuit:

PNP complementary

Output current:

100 mA

Short circuit protection:

Yes

Reverse polarity protection:

Yes

Width / diameter:

11 mm

Height / length:

32 mm

Depth:

21 mm

Design:

Rectangular

Mechanical mounting:

Threaded sleeves M3 (brass)

Housing material:

Plastic (ABS, ASA, PMMA)

Front (optics):

PMMA

Connection types:

Connector M8 4 pin

Protection class:

IP 67

Operating temperature:

-25 … +55 °C

Storage temperature:

-40 … +70 °C

Vibration (sinusoidal):

IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis

Shock (semi-sinusoidal):

IEC 60068-2-27:2009 50 g / 11 ms, 10 impulses per axis and direction

Datasheet:

View
