Description

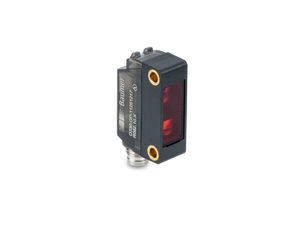

The Baumer O330.GP-PLPVT.72ZV/E022_T003 is a high-performance sensor with background suppression and a line beam type. It offers a sensing distance of 20 to 250 mm and a sensing range of 8 to 275 mm. Equipped with a pulsed PinPoint LED light source with a wavelength of 634 nm, it ensures precise detection with a response time of less than 2.5 ms. The sensor features both light and dark operating modes and includes PNP complementary output with a maximum output current of 100 mA. It supports voltage supply from 10 to 30 VDC and has built-in short circuit and reverse polarity protection. The device is designed in a compact, rectangular shape with dimensions of 11 mm in width, 32 mm in height, and 21 mm in depth, and is housed in durable plastic with a PMMA front optics. It includes a 4-pin, 2-meter PVC cable for connectivity and is rated IP67 for protection against dust and water ingress. Suitable for operating temperatures from -25 to +55 °C, it can withstand significant environmental challenges, including vibrations and shocks as specified by IEC standards. Ideal for a variety of industrial applications requiring reliable and precise object detection.
