Description

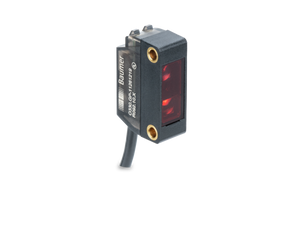

The Baumer O330.RP-GDZZZ.72ZV/H006 is a retro-reflective sensor equipped with a pulsed PinPoint LED light source, offering a nominal range of 6 meters and an actual range of 5 meters. It features a polarization filter and a flashing output indicator for alignment or soiled lens detection. The sensor includes a yellow LED output indicator and a green LED for power on indication. With a wavelength of 634 nm and a response time of less than 0.5 ms, it ensures quick and reliable operation. The sensor operates within a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 50 mA. It includes short circuit and reverse polarity protection, and operates in a dark mode with a push-pull output circuit capable of handling 100 mA output current. The compact, rectangular design measures 11 mm in width, 32 mm in height, and 21 mm in depth, with threaded sleeves M3 for mechanical mounting and a durable plastic housing. It connects via a 4-pin, 2-meter PVC cable and operates effectively in temperatures ranging from -25 to +55 °C, with a protection class of IP 67.
