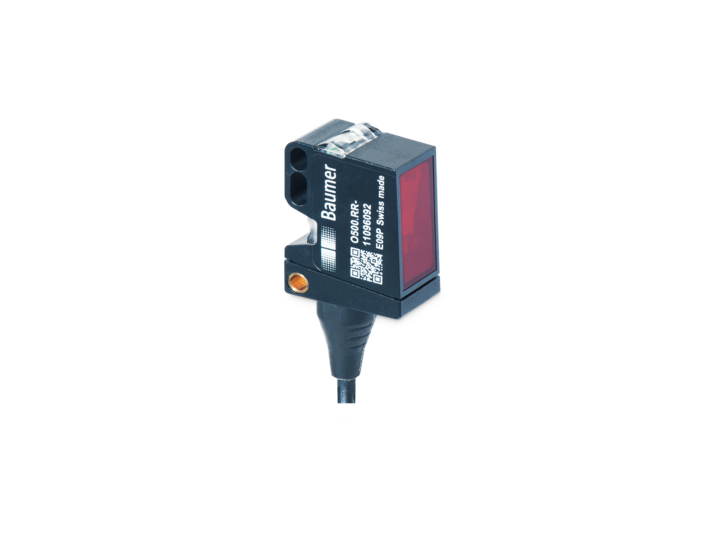

The Baumer O500.DI-GM1J.72CU 11199084 is a high-performance distance measuring sensor with an IO-Link interface, offering a measuring range of 60 to 550 mm. It features teach-in and IO-Link adjustment options, and is equipped with green and yellow LED indicators for power and status, respectively. The sensor provides a resolution between 500 and 5000 µm and maintains a linearity error of ±3 to 27.5 mm. It utilizes a pulsed infrared diode with a wavelength of 860 nm and has a fast response time of less than 0.49 ms. Designed for durability, it operates within a voltage supply range of 10 to 30 VDC and includes protection against short circuits and reverse polarity. The compact, rectangular plastic housing measures 18 mm in width, 45 mm in length, and 32 mm in depth, and is IP 67 rated for dust and water resistance. Suitable for a variety of industrial applications, the sensor operates effectively in temperatures ranging from -25 to +60 °C.
- Type:
- Distance measuring
- Version:
- IO-Link measuring
- Measuring distance Sd:
- 60 550 mm
- Adjustment:
- Teach-in and IO-Link
- Power on indication:
- LED green
- Light indicator:
- LED yellow
- Resolution:
- 500 5000 µm
- Linearity error:
- ± 3 27.5 mm
- Beam type:
- Point
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1°
- Temperature drift:
- < 0,2 % Sde/KLight source=Pulsed infrared diode
- Wave length:
- 860 nm
- Response time / release time:
- < 0.49 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA
- Voltage drop Vd:
- <3 VDC
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 18 mm
- Height / length:
- 45 mm
- Depth:
- 32 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Protection class:
- IP 67
- Operating temperature:
- -25 +60 °C
