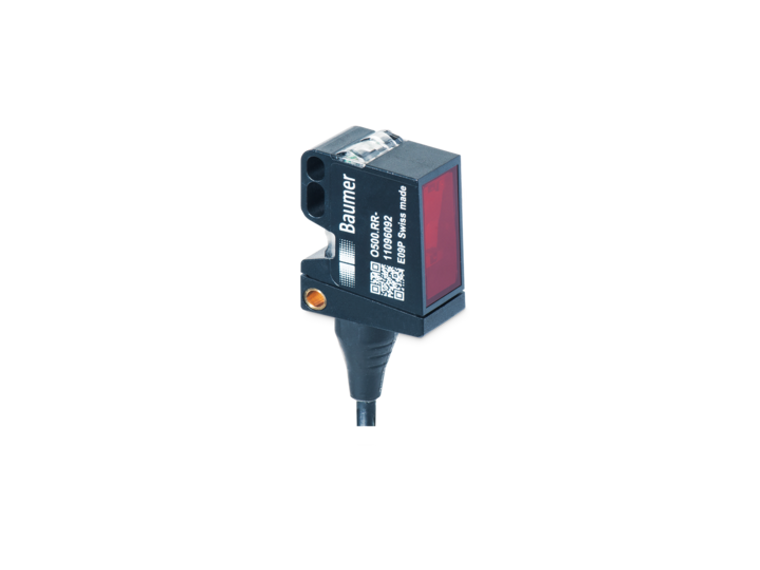

The Baumer O500.DP-GM1J.72CU 11199082 is a high-performance distance measuring sensor with a range of 60 to 400 mm. It features IO-Link measuring capabilities, Teach-in and IO-Link adjustment, and a pulsed PinPoint LED light source with a wavelength of 630 nm. The sensor offers a resolution between 500 and 3000 µm and maintains linearity error within ±3 to 20 mm. It is equipped with a green LED for power indication and a yellow LED as a light indicator. The device has a fast response and release time of less than 0.49 ms, operates on a 10 to 30 VDC supply, and consumes a maximum of 40 mA with no load. It includes safety features such as short circuit and reverse polarity protection. The sensor's robust design features a plastic housing (ASA, PMMA) with PMMA optics, measures 18 mm in width, 45 mm in length, and 32 mm in depth, and is IP 67 rated for dust and water resistance. Suitable for a wide range of industrial applications, it operates effectively in temperatures ranging from -25 to +60 °C.
- Type:
- Distance measuring
- Version:
- IO-Link measuring
- Measuring distance Sd:
- 60 400 mm
- Adjustment:
- Teach-in and IO-Link
- Power on indication:
- LED green
- Light indicator:
- LED yellow
- Resolution:
- 500 3000 µm
- Linearity error:
- ± 3 20 mm
- Beam type:
- Point
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1°
- Temperature drift:
- < 0,2 % Sde/KLight source=Pulsed PinPoint LED
- Wave length:
- 630 nm
- Response time / release time:
- < 0.49 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA
- Voltage drop Vd:
- <3 VDC
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 18 mm
- Height / length:
- 45 mm
- Depth:
- 32 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Protection class:
- IP 67
- Operating temperature:
- -25 +60 °C
