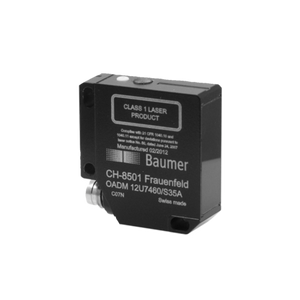

The Baumer OADM 12U6460/S35A 10152994 is a high-precision optical distance sensor with a measuring range of 16 to 120 mm and a beam diameter that adjusts from 0.9 to 0.5 mm. It features Teach-in adjustment via a button or externally, with a minimum Teach-in range of 2 mm. The device includes a green LED for power indication and a red LED to signal a soiled lens. It offers a resolution between 2 and 120 µm and a linearity error from ±0.015 to 0.35 mm. The sensor uses a pulsed red laser diode with a wavelength of 650 nm and falls under Laser class 2. It has a fast response and release time of less than 0.9 ms, operates on a voltage supply range of 12 to 28 VDC, and consumes a maximum of 100 mA with no load. The output is analog, providing a signal from 0 to 10 VDC, and it supports a load resistance of over 100 kOhm. Safety features include short circuit and reverse polarity protection. The sensor's compact design measures 12.4 mm in width, 37 mm in height, and 34.5 mm in depth, with a die-cast zinc housing and glass optics. It connects via an M8 4-pin connector, is immune to ambient light up to 30 kLux, and is rated IP 67 for protection against dust and water ingress. It operates effectively in temperatures ranging from 0 to +50 °C.
- Measuring distance Sd:
- 16 120 mm
- Beam diameter:
- 0.9 0.5 mm
- Adjustment:
- Teach-in: button / external
- Teach-in range min.:
- > 2 mm
- Power on indication:
- LED green
- Soiled lens indicator:
- LED red
- Resolution:
- 2 120 µm
- Linearity error:
- ± 0.015 0.35 mm
- Beam type:
- Point
- Interference suppression:
- < 30 ms
- Temperature drift:
- < 0,06 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 650 nm
- Laser class:
- 2
- Response time / release time:
- < 0.9 ms
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 100 mA
- Output circuit:
- Analog
- Output signal:
- 0 ... 10 VDC
- Load resistance:
- > 100 kOhm
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 12.4 mm
- Height / length:
- 37 mm
- Depth:
- 34.5 mm
- Design:
- Rectangular
- Housing material:
- Die-cast zinc
- Front (optics):
- Glass
- Connection types:
- Connector M8 4 pin
- Ambient light immunity:
- < 30 kLux
- Protection class:
- IP 67
- Operating temperature:
- 0 +50 °C
