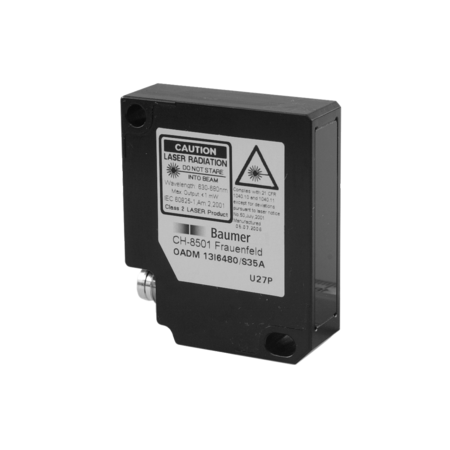

The Baumer OADM 13I6575/S35A 10157485 is a high-precision optical distance sensor with a measuring range of 50 to 350 mm. It features Teach-in adjustment via a button or external input, with a minimum Teach-in range of 5 mm. The device includes a green LED for power indication and a red LED to signal a soiled lens. It offers a resolution between 10 and 400 µm and a linearity error of ±0.05 to 1.2 mm. The sensor emits a line beam with a width of 2 mm and a height varying from 4 to 9 mm. It has interference suppression under 30 ms and minimal temperature drift of less than 0.04% Sde/K. The sensor uses a pulsed red laser diode with a wavelength of 650 nm and is classified as Laser class 2. It has a fast response and release time of less than 0.9 ms. Operating on a voltage supply range of 12 to 28 VDC, it consumes a maximum of 100 mA with no load. The output is analog, providing a 4 to 20 mA signal, and it includes short circuit and reverse polarity protection. The sensor's compact design measures 13.4 mm in width, 48.2 mm in height, and 40 mm in depth, with a durable aluminum housing and glass optics. It features an M8 4-pin connector, can withstand ambient light up to 30 kLux, and is rated IP 67 for protection against dust and water ingress. Suitable for operating temperatures from 0 to +50 °C, this sensor is ideal for precise distance measurement in challenging industrial environments.
- Measuring distance Sd:
- 50 350 mm
- Adjustment:
- Teach-in: button / external
- Teach-in range min.:
- > 5 mm
- Power on indication:
- LED green
- Soiled lens indicator:
- LED red
- Resolution:
- 10 400 µm
- Linearity error:
- ± 0.05 1.2 mm
- Beam type:
- Line
- Beam width:
- 2 mm
- Beam height:
- 4 9 mm
- Interference suppression:
- < 30 ms
- Temperature drift:
- < 0,04 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 650 nm
- Laser class:
- 2
- Response time / release time:
- < 0.9 ms
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 100 mA
- Output circuit:
- Analog
- Output signal:
- 4 ... 20 mA
- Load resistance:
- < (+Vs - 6 V) / 0,02 A
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 13.4 mm
- Height / length:
- 48.2 mm
- Depth:
- 40 mm
- Design:
- Rectangular
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M8 4 pin
- Ambient light immunity:
- < 30 kLux
- Protection class:
- IP 67
- Operating temperature:
- 0 +50 °C
