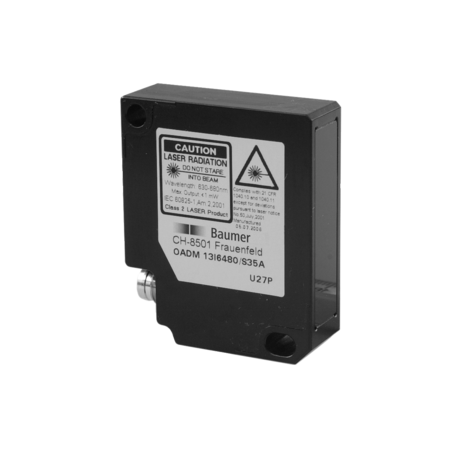

The Baumer OADM 13T6575/S35A 11003208 is a high-precision optical distance sensor designed for versatile applications requiring a measuring distance of 50 to 350 mm. It features RS232 adjustment for easy configuration and a green LED for power indication. The sensor offers a resolution range of 50 to 400 µm and a linearity error between ±0.18 to 1.2 mm. Equipped with a pulsed red laser diode with a wavelength of 650 nm and laser class 2, it ensures safe and reliable measurements. The device has a fast response and release time of less than 0.9 ms, operates on a voltage supply range of 12 to 28 VDC, and consumes a maximum of 80 mA with no load. It includes short circuit and reverse polarity protection, enhancing its durability and lifespan. The sensor's compact design features a rectangular aluminum housing with glass optics, an M8 4-pin connector, and is IP67 rated for protection against dust and water ingress. It operates effectively within a temperature range of 0 to +50 °C and is immune to ambient light up to 30 kLux.
- Measuring distance Sd:
- 50 350 mm
- Adjustment:
- RS232
- Power on indication:
- LED green
- Resolution:
- 50 400 µm
- Linearity error:
- ± 0.18 1.2 mm
- Beam type:
- Line
- Beam width:
- 2 mm
- Beam height:
- 4 9 mm
- Alarm indicator:
- LED red
- Temperature drift:
- < 0,04 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 650 nm
- Laser class:
- 2
- Response time / release time:
- < 0.9 ms
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 80 mA
- Output circuit:
- RS232
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 13.4 mm
- Height / length:
- 48.2 mm
- Depth:
- 40 mm
- Design:
- Rectangular
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M8 4 pin
- Ambient light immunity:
- < 30 kLux
- Protection class:
- IP 67
- Operating temperature:
- 0 +50 °C
