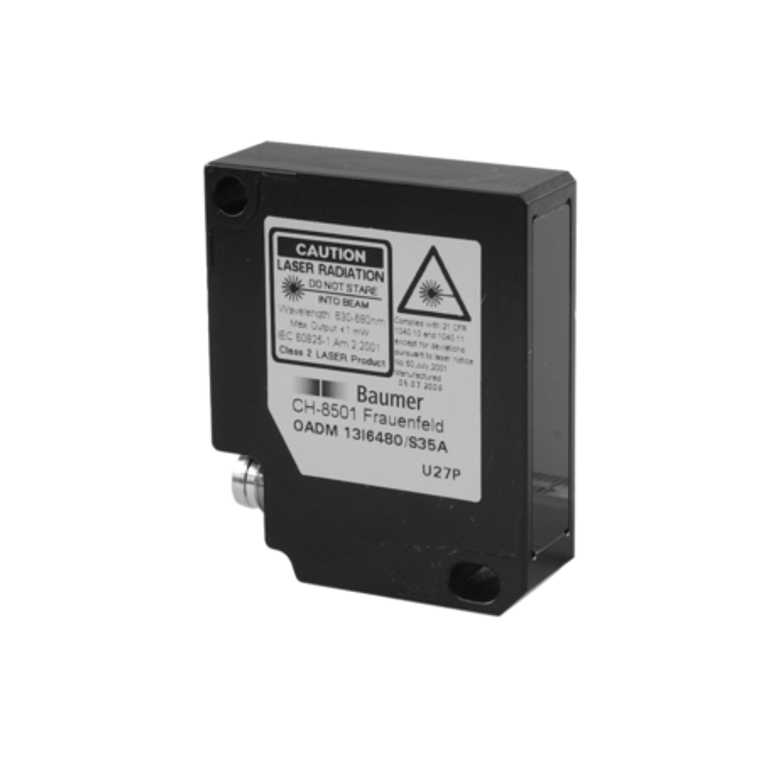

The Baumer OADM 13T7480/S35A 11043072 is a high-precision laser distance sensor designed for accurate measurement across distances from 50 to 550 mm. It features a small beam diameter of 1 mm for focused targeting and high resolution ranging from 90 to 1150 µm. The sensor is equipped with RS232 for easy adjustment, and visual indicators including a green LED for power and a red LED for alarms. It offers excellent stability with a linearity error of ±0.3 to 3.5 mm and minimal temperature drift. The pulsed red laser diode, with a wavelength of 650 nm and laser class 2, ensures safe and reliable operation. This sensor responds quickly with a response time of less than 2 ms and is built to last in demanding environments with IP 67 protection, operating temperatures from 0 to +50 °C, and robust aluminum housing. It also features short circuit and reverse polarity protection, enhancing its durability and usability in various applications.
- Measuring distance Sd:
- 50 550 mm
- Beam diameter:
- 1 mm
- Adjustment:
- RS232
- Power on indication:
- LED green
- Resolution:
- 90 1150 µm
- Linearity error:
- ± 0.3 3.5 mm
- Beam type:
- Point
- Alarm indicator:
- LED red
- Temperature drift:
- < 0,07 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 650 nm
- Laser class:
- 2
- Response time / release time:
- < 2 ms
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 80 mA
- Output circuit:
- RS232
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 13.4 mm
- Height / length:
- 48.2 mm
- Depth:
- 40 mm
- Design:
- Rectangular
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M8 4 pin
- Ambient light immunity:
- < 100 kLux
- Protection class:
- IP 67
- Operating temperature:
- 0 +50 °C
