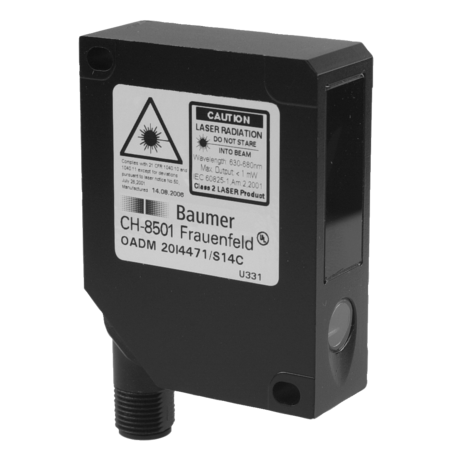

The Baumer OADM 20U2441/S14C 11077734 is a high-precision optical distance sensor with a measuring range of 30 to 70 mm and a beam diameter that adjusts from 1 to 0.2 mm. It features Teach-in adjustment via a button or external control, with a minimum Teach-in range of 2 mm. The device includes a green LED for power indication and a red LED to signal a soiled lens. It offers a resolution between 4 and 20 µm and a linearity error from ±0.012 to 0.06 mm. The sensor uses a pulsed red laser diode with a wavelength of 650 nm, classified as Laser class 2, ensuring safe operation. It has a fast response and release time of less than 0.9 ms. The sensor operates on a voltage supply range of 12 to 28 VDC and consumes a maximum of 100 mA with no load. It outputs an analog signal from 0 to 10 VDC and supports a load resistance of over 100 kOhm. The sensor is equipped with short circuit and reverse polarity protection. Its compact, rectangular design measures 20.6 mm in width, 65 mm in height, and 50 mm in depth, housed in die-cast zinc with a glass front optics. It includes a rotatable M12 5-pin connector, is rated IP 67 for protection against dust and water, and operates within a temperature range of 0 to +50 °C.
- Measuring distance Sd:
- 30 70 mm
- Beam diameter:
- 1 0.2 mm
- Adjustment:
- Teach-in: button / external
- Teach-in range min.:
- > 2 mm
- Power on indication:
- LED green
- Soiled lens indicator:
- LED red
- Resolution:
- 4 20 µm
- Linearity error:
- ± 0.012 0.06 mm
- Beam type:
- PointLight source=Pulsed red laser diode
- Wave length:
- 650 nm
- Laser class:
- 2
- Response time / release time:
- < 0.9 ms
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 100 mA
- Output circuit:
- Analog
- Output signal:
- 0 ... 10 VDC
- Load resistance (analog U):
- > 100 kOhm
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 20.6 mm
- Height / length:
- 65 mm
- Depth:
- 50 mm
- Design:
- Rectangular
- Housing material:
- Die-cast zinc
- Front (optics):
- Glass
- Connection types:
- Connector M12 5 pin, rotatable
- Protection class:
- IP 67
- Operating temperature:
- 0 +50 °C
