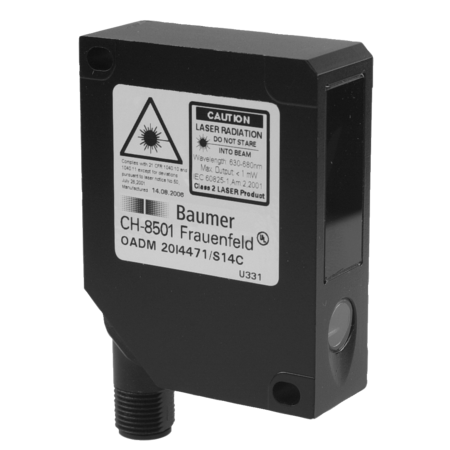

The Baumer OADM 20U2472/S14C 11077736 is a high-precision optical distance sensor with a measuring range of 50 to 300 mm and a beam diameter of 2 mm. It features Teach-in adjustment via a button or external control, with a minimum Teach-in range of 5 mm. The sensor includes a green LED for power indication and a red LED to signal a soiled lens. It offers a resolution between 10 and 330 µm and a linearity error of ±0.03 to 1 mm. The sensor utilizes a pulsed red laser diode with a wavelength of 650 nm and is classified as Laser class 2. It has a fast response and release time of less than 0.9 ms. Operating on a voltage supply range of 12 to 28 VDC, it consumes a maximum of 100 mA with no load. The output is analog, providing a signal from 0 to 10 VDC, and it supports a load resistance of over 100 kOhm. It includes short circuit and reverse polarity protection. The sensor's dimensions are 20.6 mm in width, 65 mm in height, and 50 mm in depth, with a rectangular, die-cast zinc housing and glass optics. It connects via a rotatable M12 5-pin connector and is rated IP 67 for protection against dust and water ingress. Suitable for operating temperatures from 0 to +50 °C.
- Measuring distance Sd:
- 50 300 mm
- Beam diameter:
- 2 mm
- Adjustment:
- Teach-in: button / external
- Teach-in range min.:
- > 5 mm
- Power on indication:
- LED green
- Soiled lens indicator:
- LED red
- Resolution:
- 10 330 µm
- Linearity error:
- ± 0.03 1 mm
- Beam type:
- PointLight source=Pulsed red laser diode
- Wave length:
- 650 nm
- Laser class:
- 2
- Response time / release time:
- < 0.9 ms
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 100 mA
- Output circuit:
- Analog
- Output signal:
- 0 ... 10 VDC
- Load resistance (analog U):
- > 100 kOhm
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 20.6 mm
- Height / length:
- 65 mm
- Depth:
- 50 mm
- Design:
- Rectangular
- Housing material:
- Die-cast zinc
- Front (optics):
- Glass
- Connection types:
- Connector M12 5 pin, rotatable
- Protection class:
- IP 67
- Operating temperature:
- 0 +50 °C
