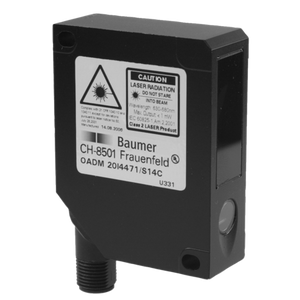

The Baumer OADM 21I6481/S14F 11003837 is a high-precision optical distance sensor with a measuring range of 200 to 1000 mm and a beam diameter of 2 mm. It features Teach-in adjustment via button or external control, with a minimum Teach-in range of 10 mm. The sensor includes a green LED for power indication and a red LED for soiled lens alert. It offers a resolution between 20 and 400 µm and a linearity error of ±0.11 to 1.65 mm. The sensor uses a pulsed red laser diode with a wavelength of 650 nm and is classified as Laser class 2. It has a fast response and release time of less than 4 ms, operates on a 12 to 28 VDC supply, and consumes a maximum of 100 mA with no load. Output options include analog signals of 4 to 20 mA or 0 to 10 VDC, and it supports a load resistance for analog current and voltage outputs. Additional features include PNP alarm output, short circuit and reverse polarity protection. The sensor's compact design measures 20.4 mm in width, 135 mm in length, and 45 mm in depth, with an aluminum housing and glass optics. It includes an M12 8-pin rotatable connector, offers ambient light immunity up to 10 kLux, and is rated IP 67 for protection against dust and water ingress. Suitable for operating temperatures from 0 to +50 °C.
- Measuring distance Sd:
- 200 1000 mm
- Beam diameter:
- 2 mm
- Adjustment:
- Teach-in: button / external
- Teach-in range min.:
- > 10 mm
- Power on indication:
- LED green
- Soiled lens indicator:
- LED red
- Resolution:
- 20 400 µm
- Linearity error:
- ± 0.11 1.65 mm
- Beam type:
- Point
- Temperature drift:
- < 0,02 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 650 nm
- Laser class:
- 2
- Response time / release time:
- < 4 ms
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 100 mA
- Output circuit:
- Analog
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Load resistance (analog I):
- < (+Vs - 6 V) / 0,02 A
- Load resistance (analog U):
- > 100 kOhm
- Output current:
- 100 mA
- Alarm output:
- PNP
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 20.4 mm
- Height / length:
- 135 mm
- Depth:
- 45 mm
- Design:
- Rectangular
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin, rotatable
- Ambient light immunity:
- < 10 kLux
- Protection class:
- IP 67
- Operating temperature:
- 0 +50 °C
