Description

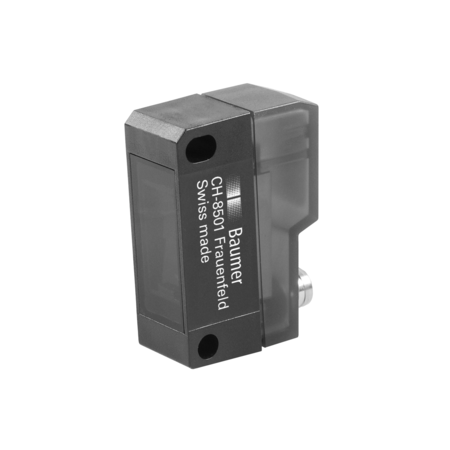

The Baumer OEDK 14P5101/S35A 11001236 is a through beam laser sensor designed for precise detection with an actual range of 8 meters and a nominal range of 10 meters. This receiver model features a flashing light indicator for alignment or soiled lens detection and a yellow LED light indicator. It operates without sensitivity adjustment and boasts a rapid response and release time of less than 0.5 ms. The sensor is powered by a voltage supply range of 10 to 30 VDC, with a typical current consumption of 20 mA and a voltage drop of less than 1.8 VDC. It offers both light and dark operating modes through a PNP output circuit and can handle an output current of up to 100 mA. Enhanced with short circuit and reverse polarity protection, this sensor is built for durability and reliability. Its compact, rectangular design measures 14.8 mm in width, 43 mm in height, and 31 mm in depth, and is constructed from robust plastic materials (ASA, MABS) with a PMMA front optics. It connects via an M8 4-pin connector and operates effectively within a temperature range of -25 to +65 °C. The sensor is also IP 67 certified, ensuring protection against dust and water ingress.
